Circuit Schematic

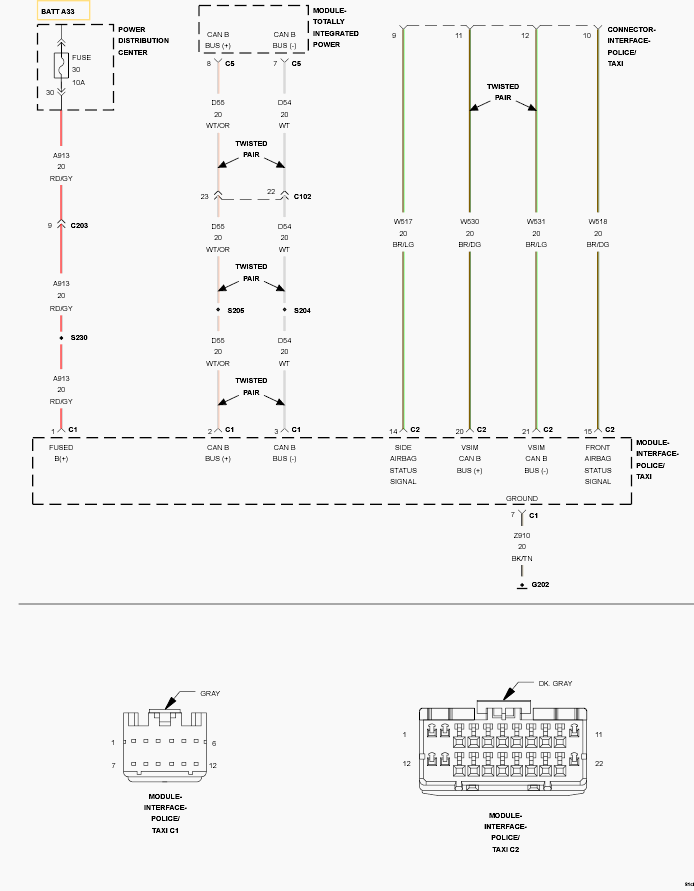

Fig 1: Fused B +, VSIM CAN B BUS, Side/Front Airbag Status Signal Circuit Schematic

GC0097246

Courtesy of CHRYSLER LLC
