Home >> Chrysler >> 2008 >> Sebring Base, 2D Convertible, 2.4 K >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Air Bag Restraint System - Electrical Diagnostics >> DTC Troubleshooting >> B1B70-Up-Front Left Satellite Acceleration Sensor Internal >> Notes

B1B70-Up-Front Left Satellite Acceleration Sensor Internal: Notes

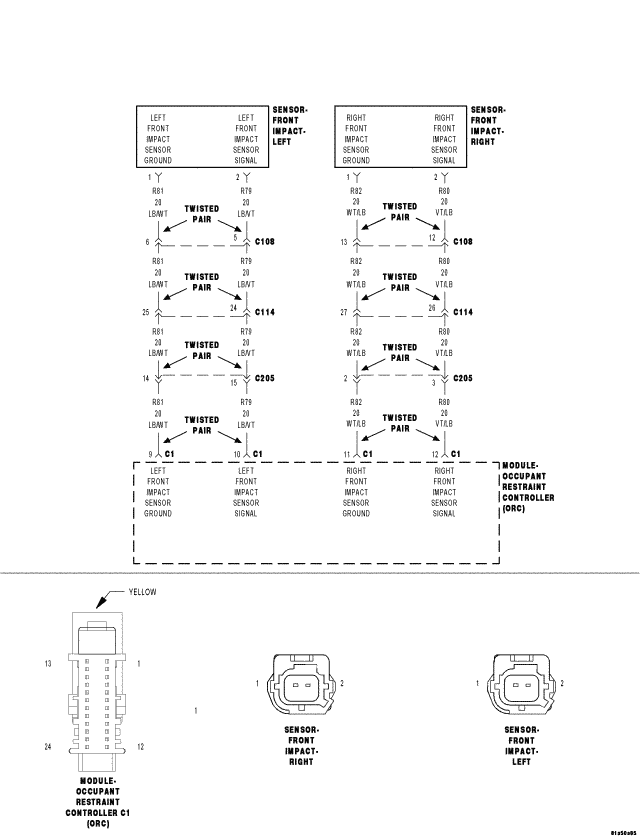

Fig 1: 07JS MS LFT & RT FRONT SAS

GC0059148

Courtesy of CHRYSLER LLC
