Shift Interlock Cable

Fig 1: Ignition Key/Switch Positions

Courtesy of CHRYSLER LLC

1 - LOCK

2 - ACC

3 - ON

4 - START

Verify that ignition key is in ACC position.

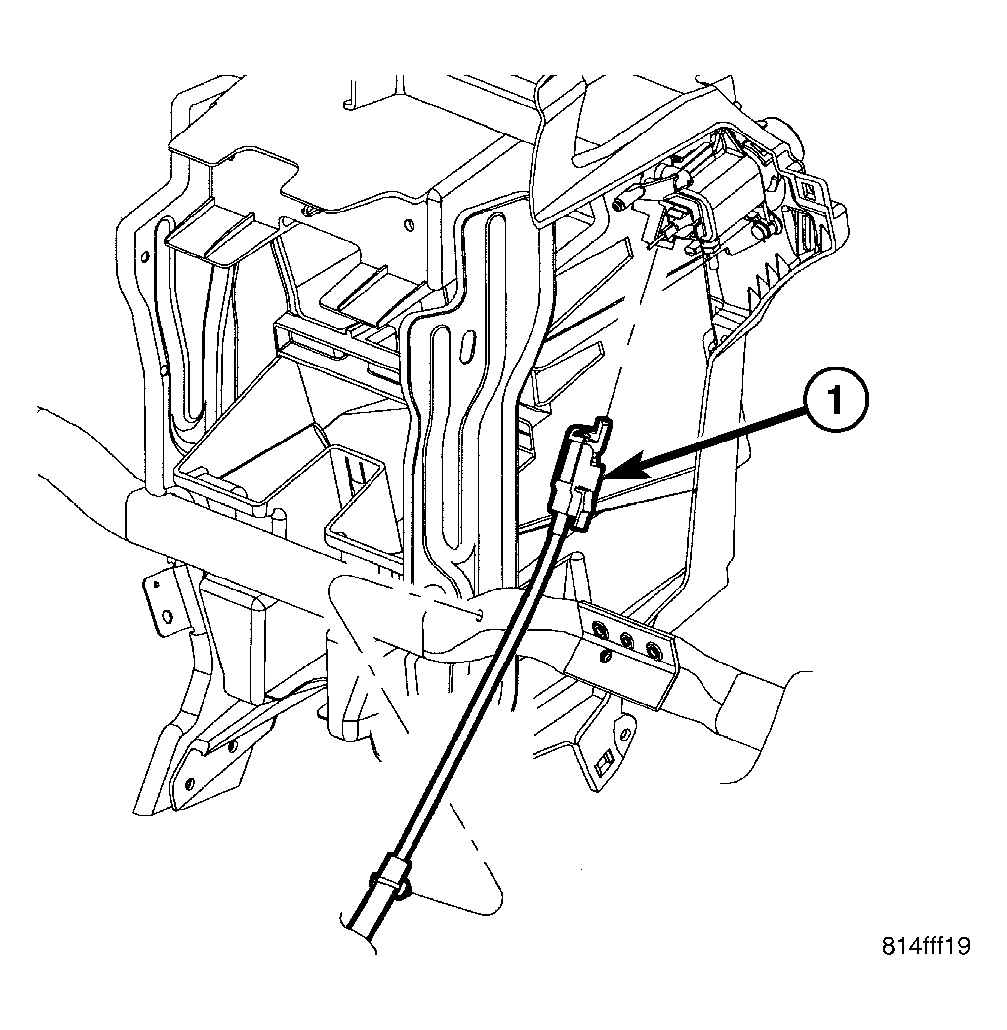

Fig 2: Interlock Cable at Ignition Cylinder
Courtesy of CHRYSLER LLC

1 - INTERLOCK CABLE
Install shift interlock cable to ignition cylinder. Secure cable to instrument panel at retainer.

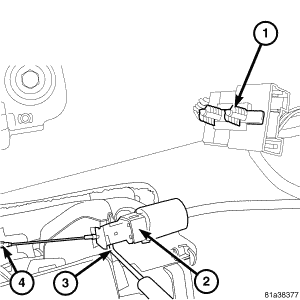

Fig 3: Identifying Shift Interlock Cable
Courtesy of CHRYSLER LLC
Route shift interlock cable towards shift mechanism.
Connect interlock cable core (4) to shift mechanism cam, and then secure cable housing to shift mechanism (3).
Adjust interlock cable. Refer to ADJUSTMENTS .
Install center console assembly. Refer to INSTALLATION .
