Module-Front Wiper

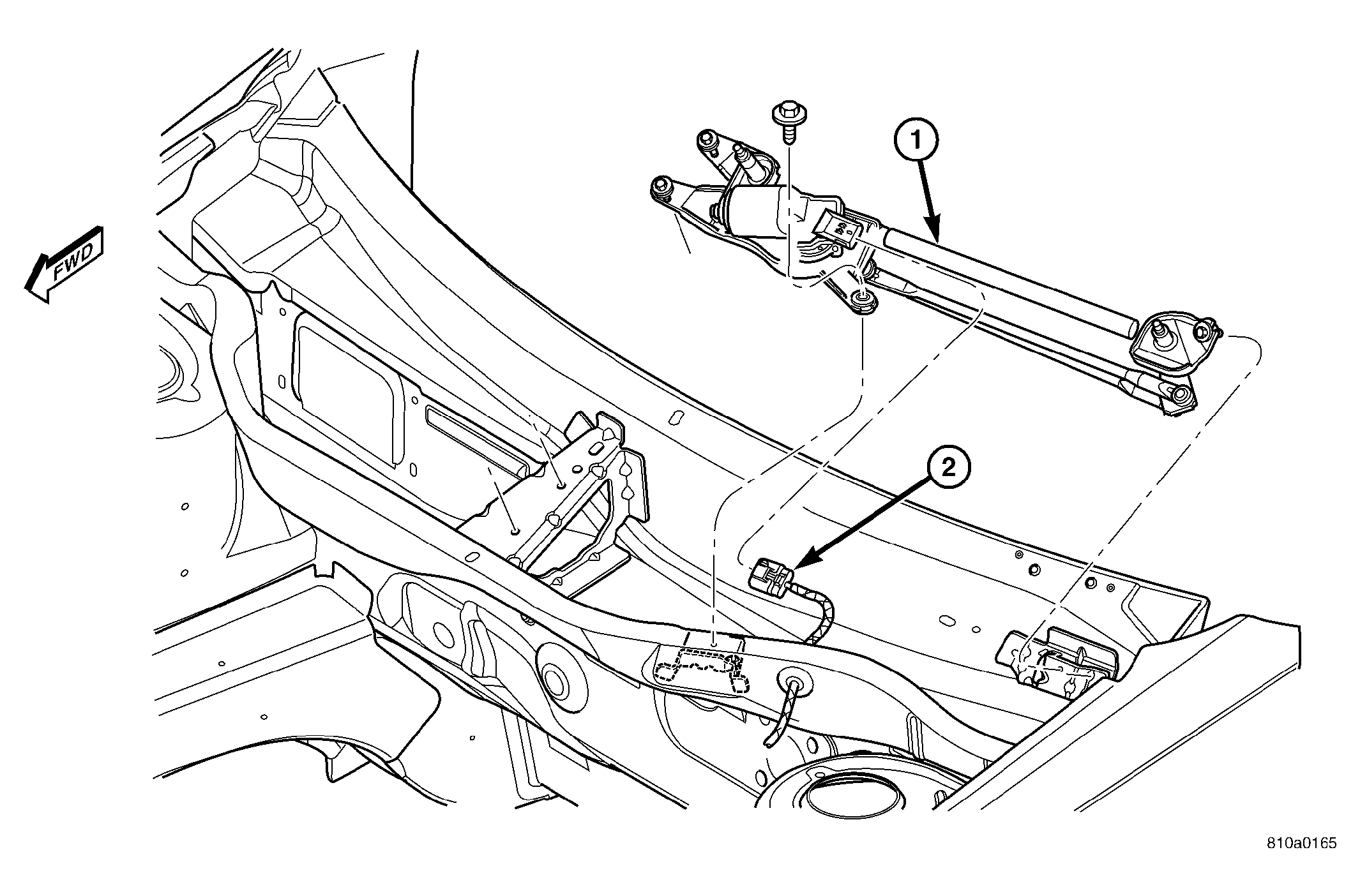

Fig 1: Front Wiper Module - Remove/Install
GC0000192Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the cowl plenum grille. Refer to REMOVAL .
  3. Disconnect the wiper motor electrical connector (2).
  4. Remove the four retaining bolts to the wiper module (1).
  5. Remove wiper module (1) from vehicle.
