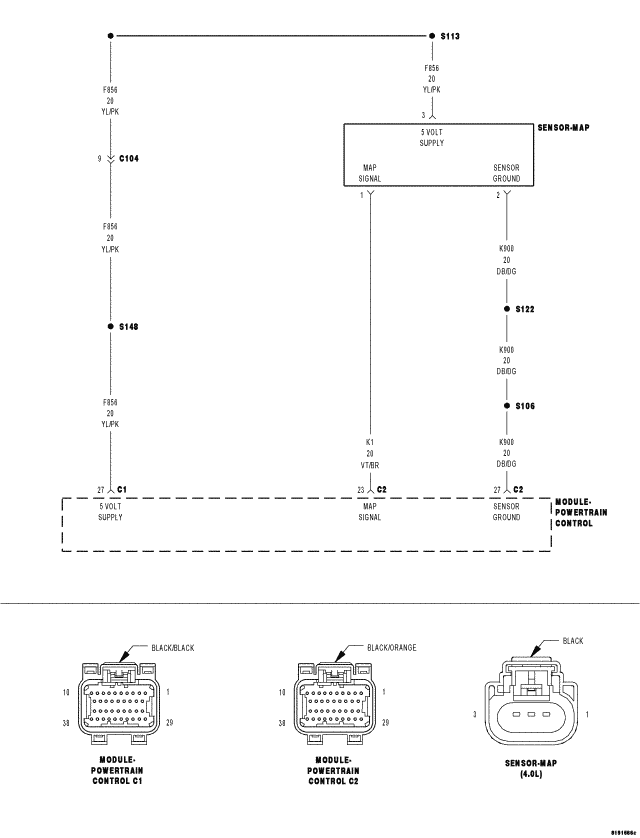

Home >> Chrysler >> 2008 >> Pacifica Limited, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0016 To P0111, Pre-Diagnostic Troubleshooting Procedure, Component Checks, Charging System Check, Power And Ground Circuit Checks >> Checking The Map Sensor Performance - 4.0L >> Circuit Schematic
