PDM-2D-Passenger Rear Window Switch MUX Input Stuck: Notes

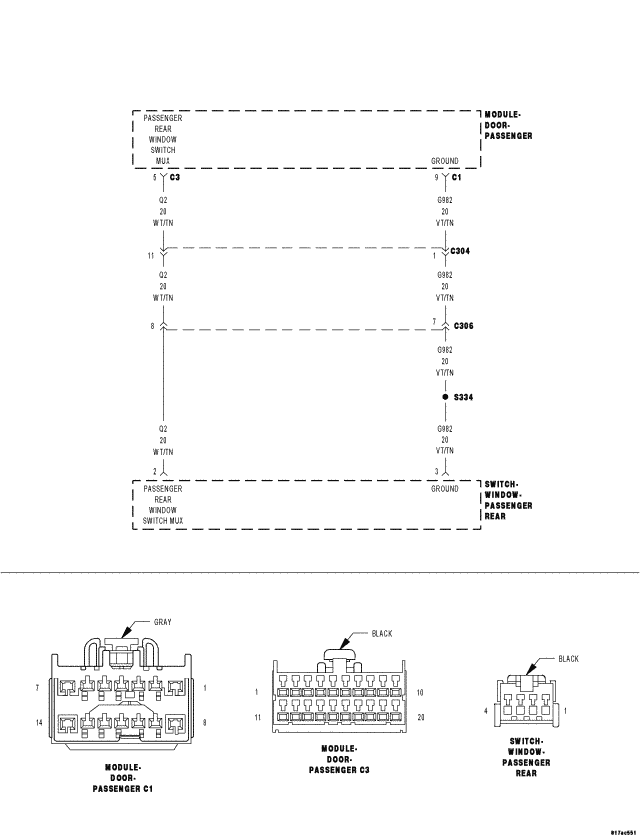

Fig 1: Passenger Rear Window Switch Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   Continuously.

2. Set Condition:

   If the voltage on the Passenger Rear Window Switch Mux circuit is between 0.6 and 4.4 volts for over 15 seconds, this code will set.
