DDM-48-Driver Rear Window Switch MUX Input Short To Ground: Notes

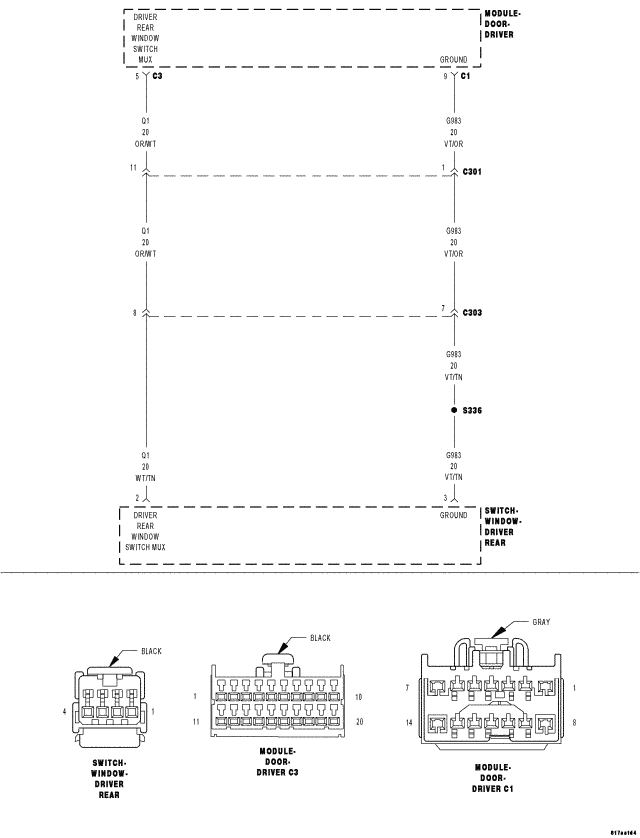

Fig 1: Driver Rear Window Switch Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   Continuously.

2. Set Condition:

   If the Driver Rear Window Switch Mux circuit is under 0.10 volt for over 1 second, this code will set.
