Cylinder Block Mounted

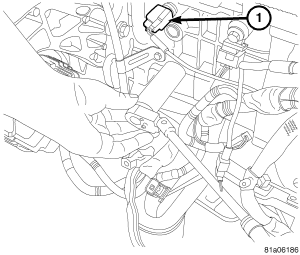

Fig 1: Identifying ECT Sensor
GC0058755Courtesy of CHRYSLER LLC
1 - ECT
  1. Disconnect negative battery cable.
  2. Partially drain cooling system below level of ECT Sensor.
  3. Disconnect ECT Sensor electrical connector.
  4. Remove ECT Sensor.
