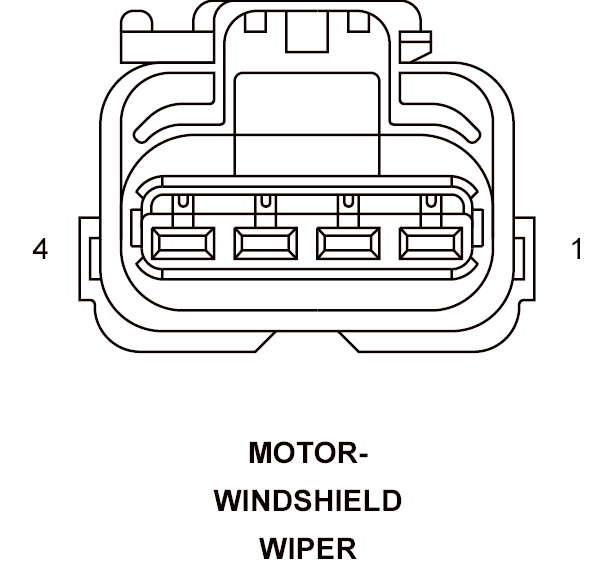

Windshield Wiper Motor Connector End View
MOTOR-WINDSHIELD WIPER - 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
W7 20BR/GY |
FRONT WIPER PARK SWITCH SENSE |
| 2 |
Z901 12BK |
GROUND |
| 3 |
W3 16BR/WT |
FRONT WIPER LOW SPEED CONTROL OUTPUT |
| 4 |
W4 12BR/OR |
FRONT WIPER HIGH SPEED CONTROL OUTPUT |
