Driver Window Motor (Except Express) Connector End View

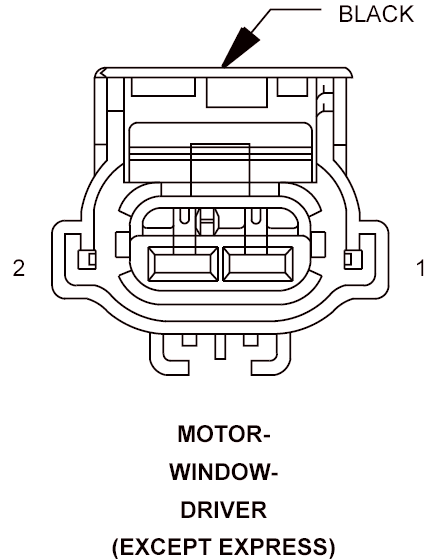

MOTOR-WINDOW-DRIVER - BLACK 2-WAY (EXCEPT EXPRESS)

GJS780253Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q11 14OR/LG DRIVER WINDOW DRIVER (UP)
2 Q21 14OR/WT DRIVER WINDOW DRIVER (DOWN)
