Rear Timing Belt Cover

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Rear Timing Belt Cover Seals
GC0001988Courtesy of CHRYSLER LLC
1 - REAR TIMING BELT COVER SEALS
2 - REAR TIMING BELT COVER
  1. Clean rear timing belt cover O-ring sealing surfaces and grooves. Lubricate new O-rings with Mopar® Dielectric Grease or equivalent to facilitate assembly.
  2. Position NEW O-rings on cover.

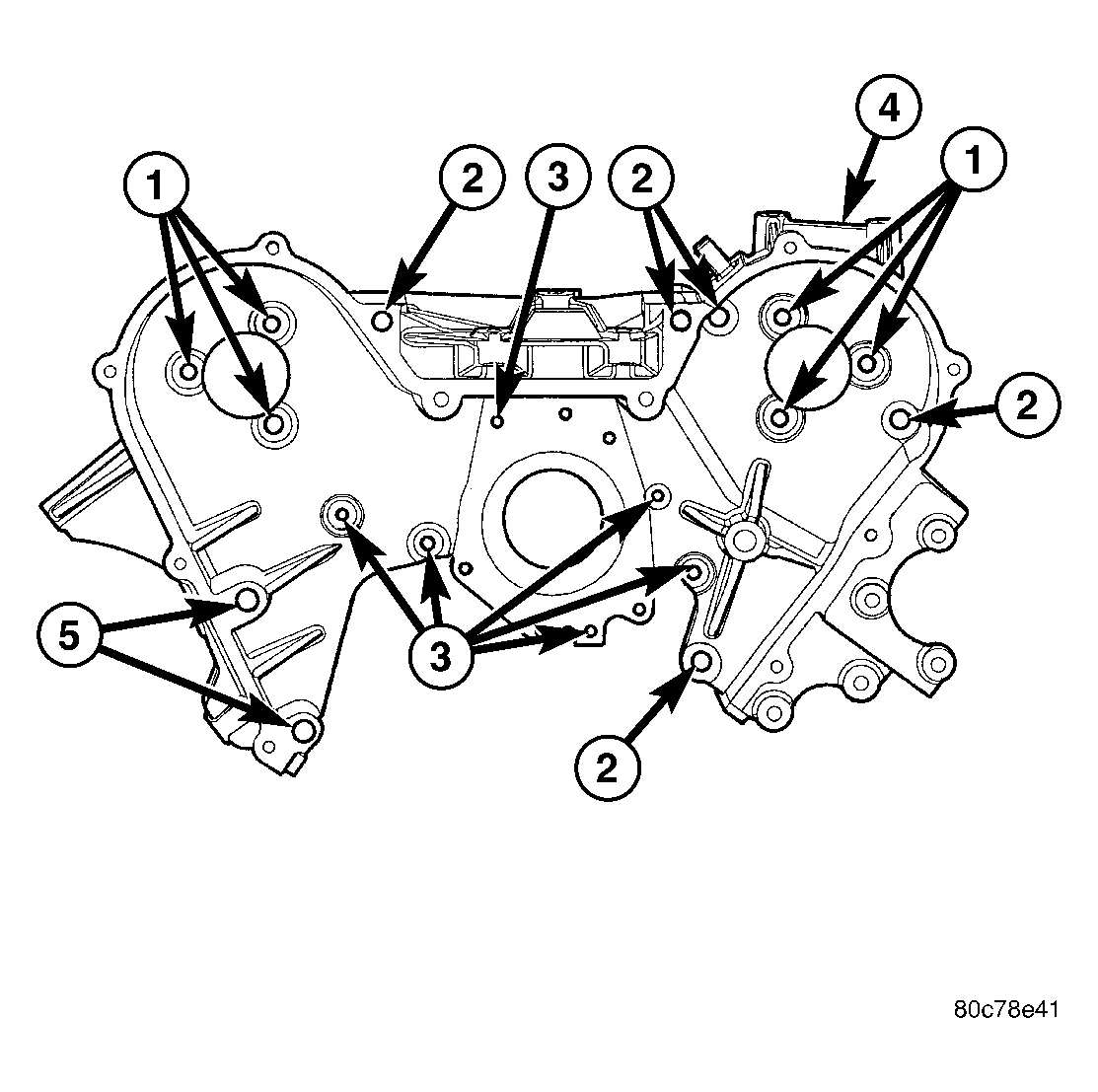

    Fig 2: Identifying Rear Timing Belt Cover Fasteners
    GC0001987Courtesy of CHRYSLER LLC
    1 - M8 FASTENERS (APPLY THREAD SEALANT)
    2 - M10 FASTENERS
    3 - M6 FASTENERS
    4 - REAR TIMING BELT COVER
    5 - M10 FASTENERS (STUD/NUT)
  3. Install rear timing belt cover. Tighten bolts to the following specified torque:
    1. M10-54 N.m (40 ft. lbs.)
    2. M8-28 N.m (20 ft. lbs.)
    3. M6-12 N.m (105 in. lbs.)
  4. Install camshaft sprockets. See INSTALLATION .
  5. Install timing belt. See INSTALLATION .
