3.5L Engine

WARNING: This page is about a different variant/trim than selected.

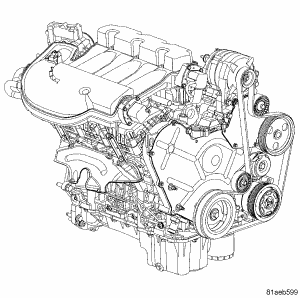

Fig 1: View Of 3.5L Engine

Courtesy of CHRYSLER LLC

The 3.5 Liter 60 degree V-6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder. The engine does not have provisions for a free wheeling valve train.

Fig 2: Cylinder Numbering & Firing Order

Courtesy of CHRYSLER LLC

The cylinders are numbered from front to rear, with the right bank odd numbered and the left bank even numbered. The firing order is 1-2-3-4-5-6.

Fig 3: Locating Engine Identification Information

Courtesy of CHRYSLER LLC

1 - REAR OF LEFT CYLINDER HEAD

2 - ENGINE IDENTIFICATION NUMBER

The engine identification number is located on the rear of engine block just below the left cylinder head.
