Circuit Schematic

WARNING: This page is about a different car, the 2007 Jeep Patriot and 2007 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

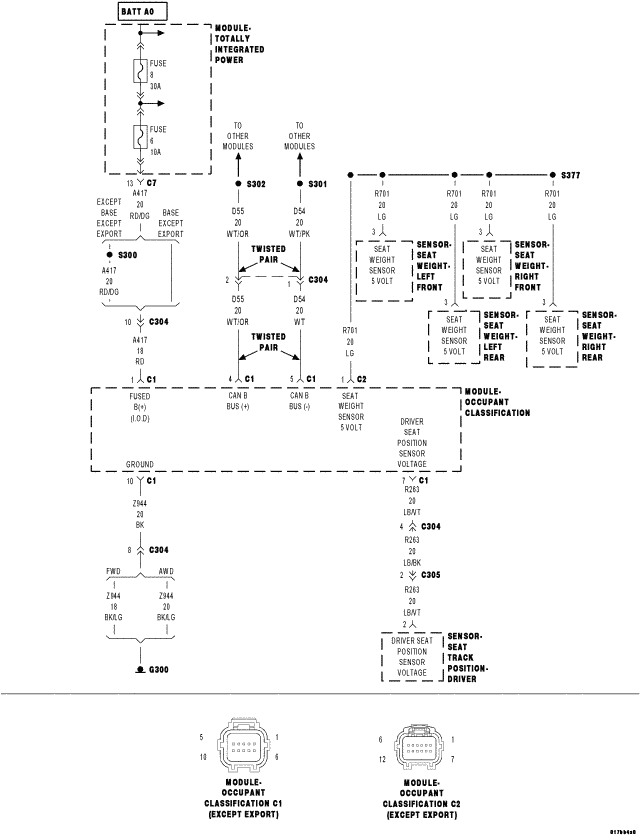

Fig 1: Occupant Classification Module Circuit Schematic
GC0053263Courtesy of CHRYSLER LLC
