Circuit Schematic

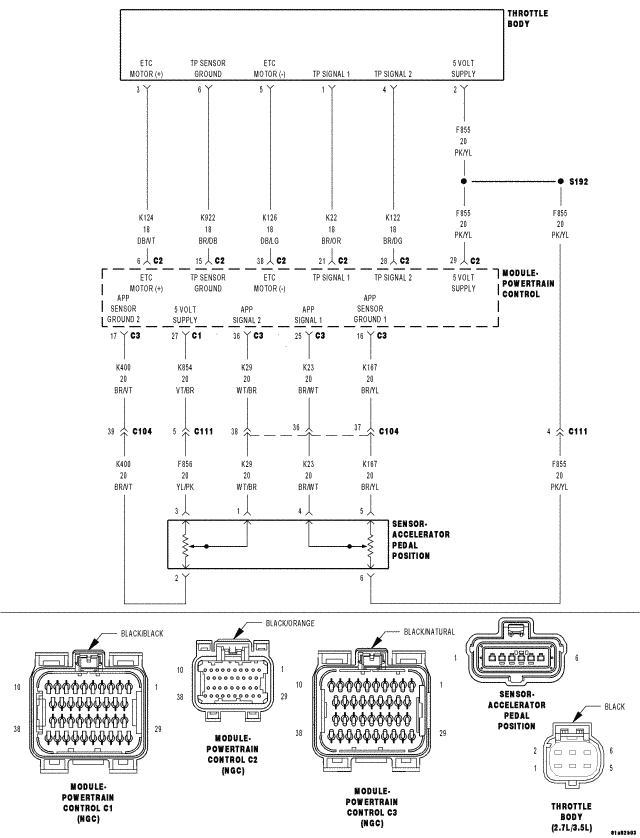

Fig 1: Accelerator Pedal Position Sensor Circuit Schematic

GC0059434

Courtesy of CHRYSLER LLC
