Home >> Chrysler >> 2007 >> Sebring Base, 2.4 K >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2009 To P2116 - GPEC >> P2074-Map/TPS Correlation - High Airflow/Vacuum Leak Detected >> Circuit Schematic

Circuit Schematic

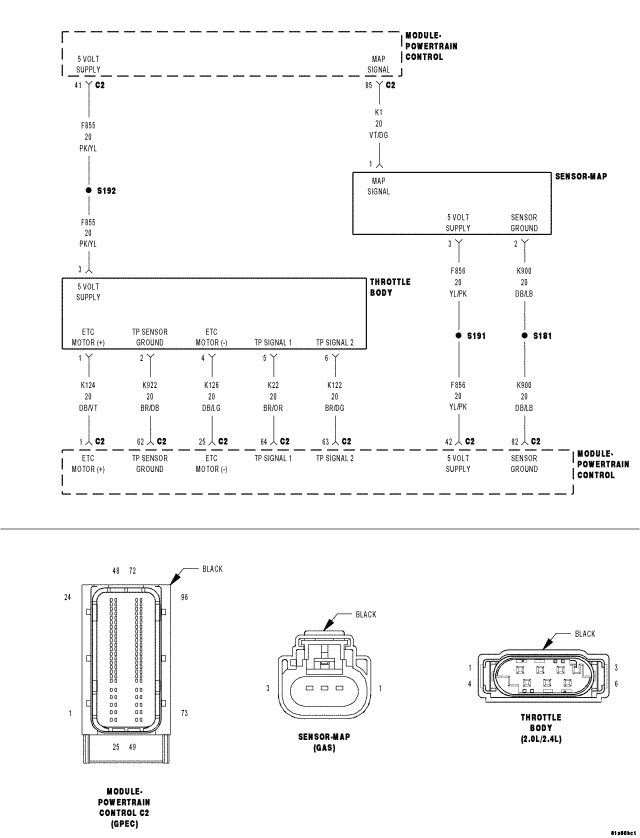

Fig 1: MAP/TPS Circuit Schematic

GC0059371

Courtesy of CHRYSLER LLC
