Home >> Chrysler >> 2007 >> Sebring Base, 2.4 K >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0642 To P150D - NGC >> P1005-Manifold Tuning Valve Control Performance >> Circuit Schematic

Circuit Schematic

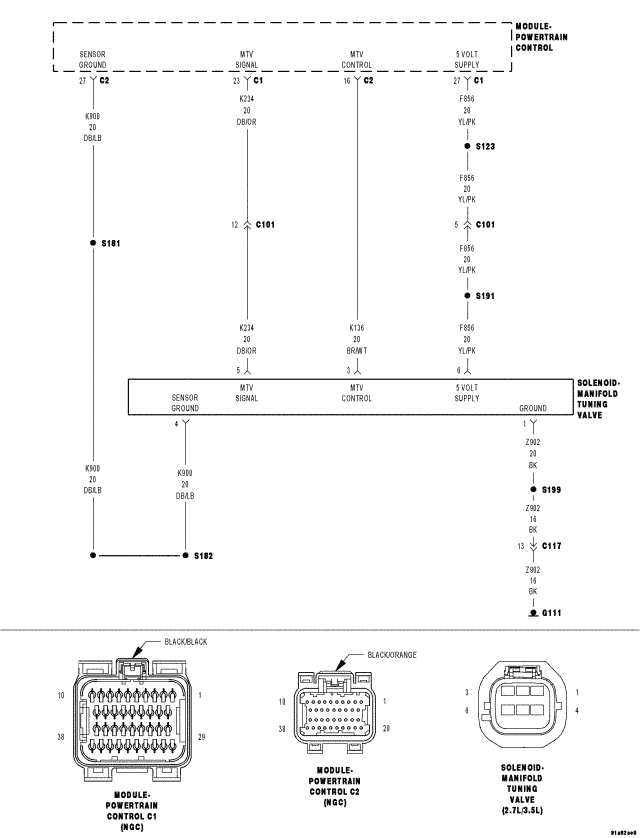

Fig 1: Manifold Tuning Valve Solenoid Circuit Schematic

GC0059430

Courtesy of CHRYSLER LLC
