Circuit Schematic

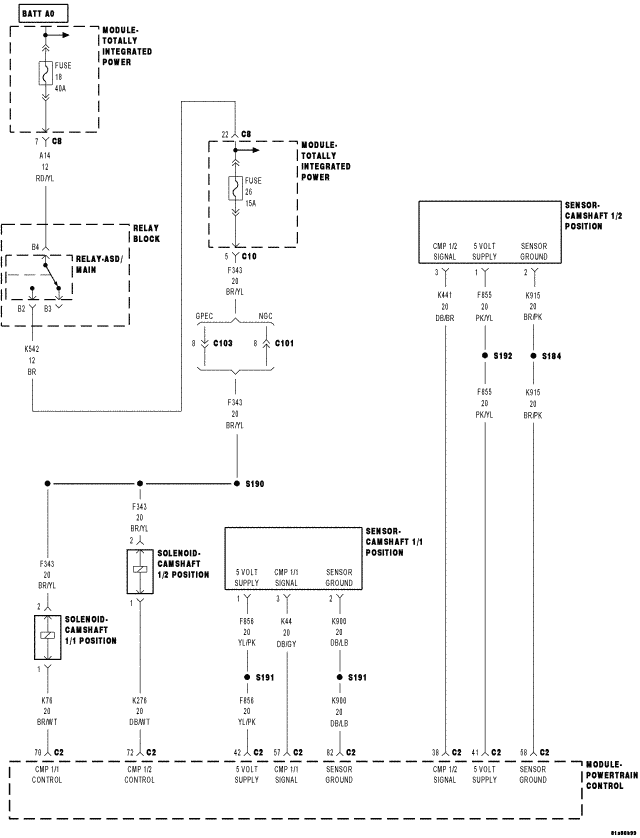

Fig 1: Camshaft Position Sensor Circuit Schematic

GC0059334

Courtesy of CHRYSLER LLC
