Crankshaft Position Sensor Connector End View

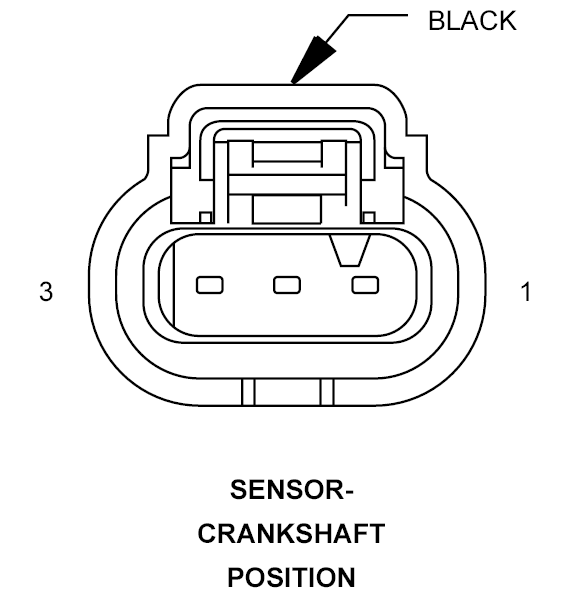

SENSOR-CRANKSHAFT POSITION - BLACK 3-WAY

GCS780101Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 F855 20PK/YL 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K24 20BR/LB CKP SIGNAL
