Left Front Fog Lamp Connector End View

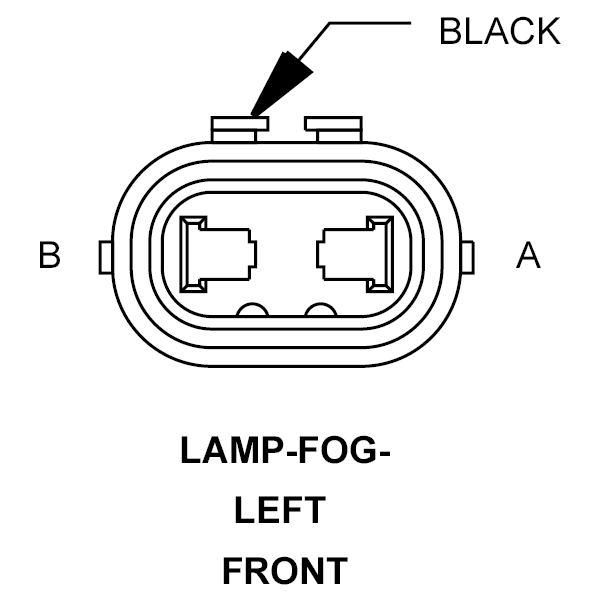

LAMP-FOG-LEFT FRONT - BLACK 2-WAY

GCS780122Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A L89 18WT/YL LEFT FRONT FOG LAMP DRIVER
B Z349 18BK/YL GROUND
