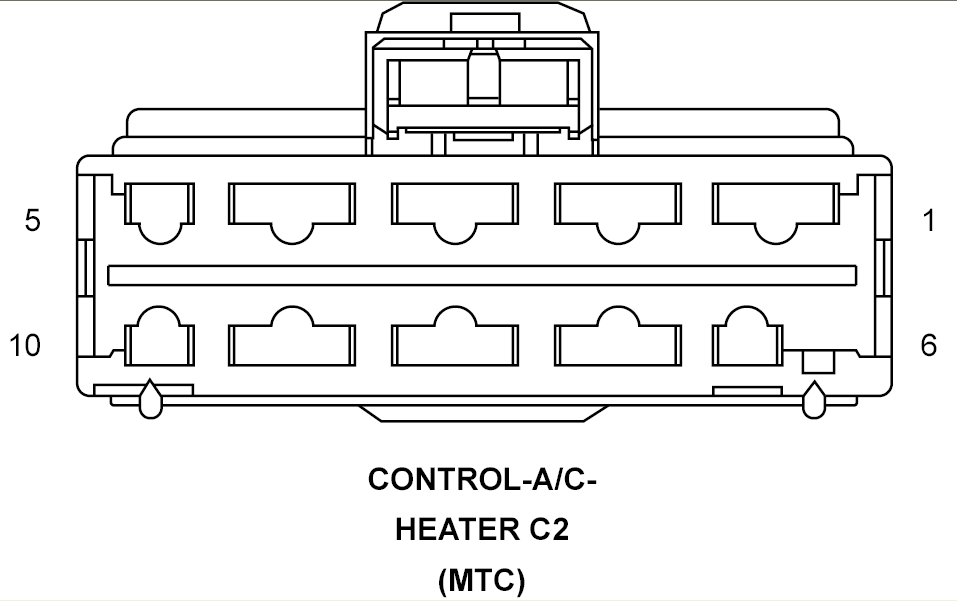

A/C Heater Control (Manual Temperature Control) Connector End View (C2)
CONTROL-A/C-HEATER C2 - 10-WAY (MTC)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
C75 12DB/GY |
BLOWER MOTOR HIGH DRIVER |
| 3 |
C73 14DB/VT |
BLOWER MOTOR M2 DRIVER |
| 4 |
Z134 12BK/LG |
GROUND |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
C72 16DB/OR |
BLOWER MOTOR M1 DRIVER |
| 10 |
C71 16DB/BR |
BLOWER MOTOR LOW DRIVER |
