Circuit Schematic

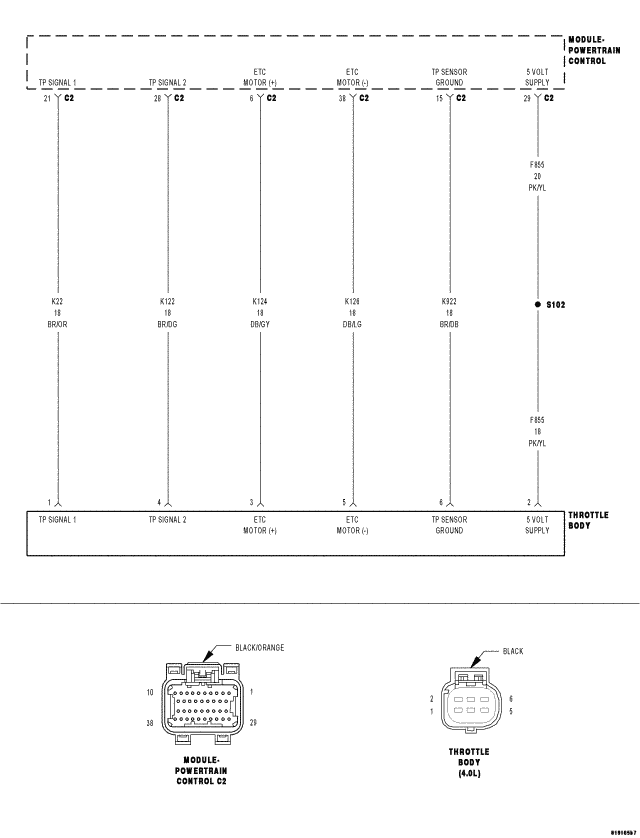

Fig 1: Throttle Body Circuit Schematic -- 4.0L

GC0049434

Courtesy of CHRYSLER LLC
