Circuit Schematic

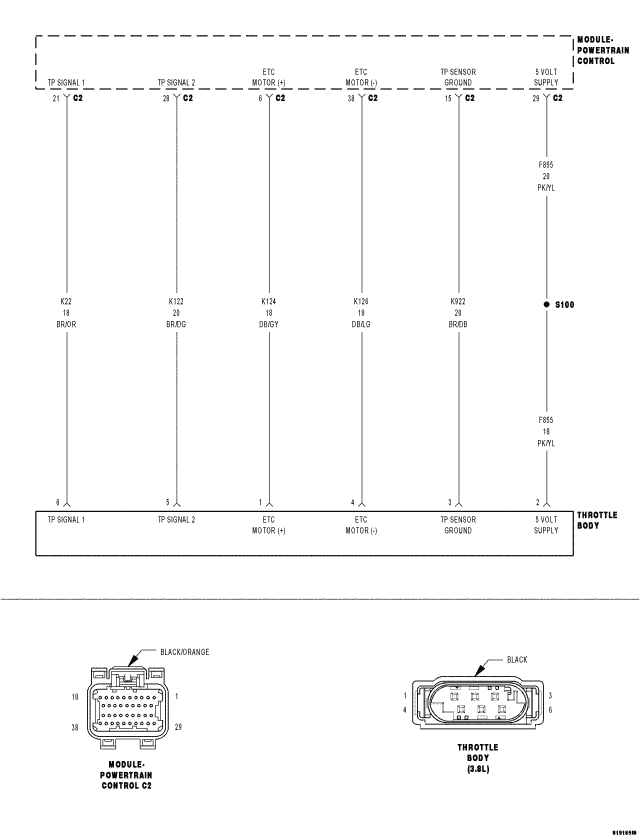

Fig 1: Throttle Body Circuit Schematic -- 3.8L

GC0049428

Courtesy of CHRYSLER LLC
