Rear CROSSMEMBER Bushing - Spring Link

Fig 1: Spring Link Mounting
GC0000276Courtesy of CHRYSLER LLC
1 - CROSSMEMBER
2 - MOUNTING BOLT AND NUT
3 - SPRING LINK
4 - MOUNTING BOLT AND NUT
  1. Raise and support vehicle. Refer to STANDARD PROCEDURE .
  2. Access and remove rear spring on side of repair. Refer to REMOVAL .
  3. Remove bolt and nut (4) fastening spring link (3) to crossmember (1).
  4. Position spring link downward, away from bushing in crossmember.

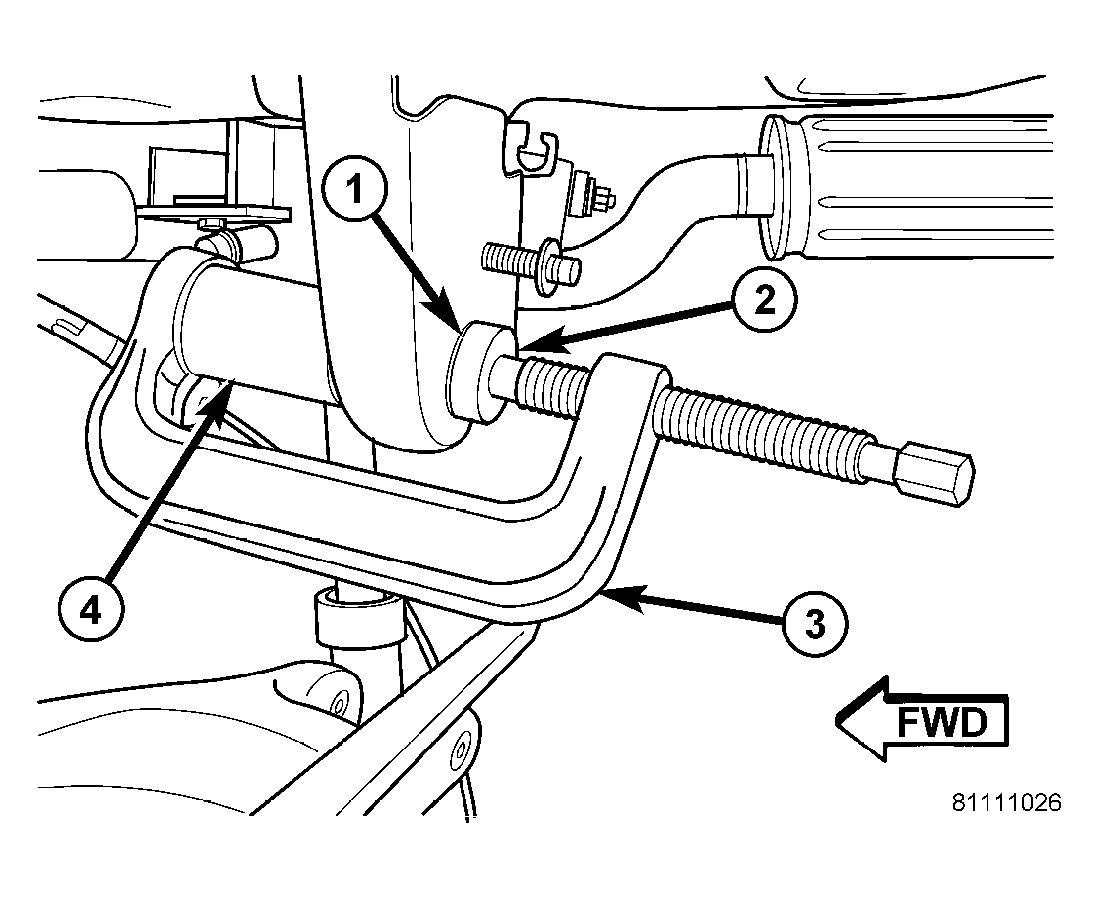

    Fig 2: Spring Link Bushing Removal
    GC0000308Courtesy of CHRYSLER LLC
    1 - BUSHING
    2 - REMOVER 9032-2
    3 - PRESS C-4212F
    4 - RECEIVER 9032-1
  5. Assemble tools over bushing (1) as shown. Ensure Receiver, Special Tool 9032-1 (4), sets against crossmember and not welds.
  6. Tighten Press screw-drive, pressing bushing out of crossmember.
