Vehicle Lead/Pull

Use the following chart for diagnosis. See Fig 1.

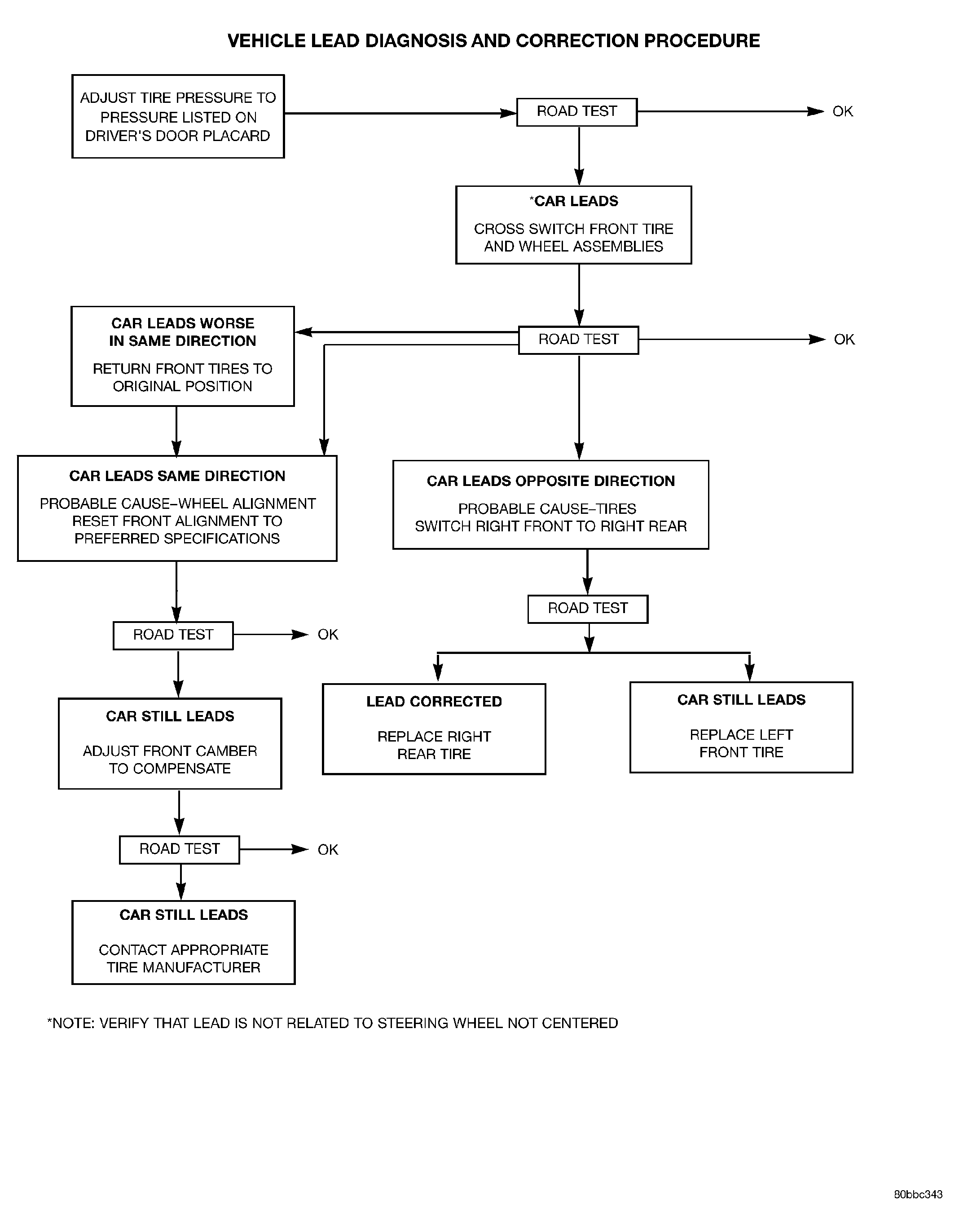

Fig 1: Vehicle Lead Diagnosis & Correction Procedure

GC0019587

Courtesy of CHRYSLER LLC
