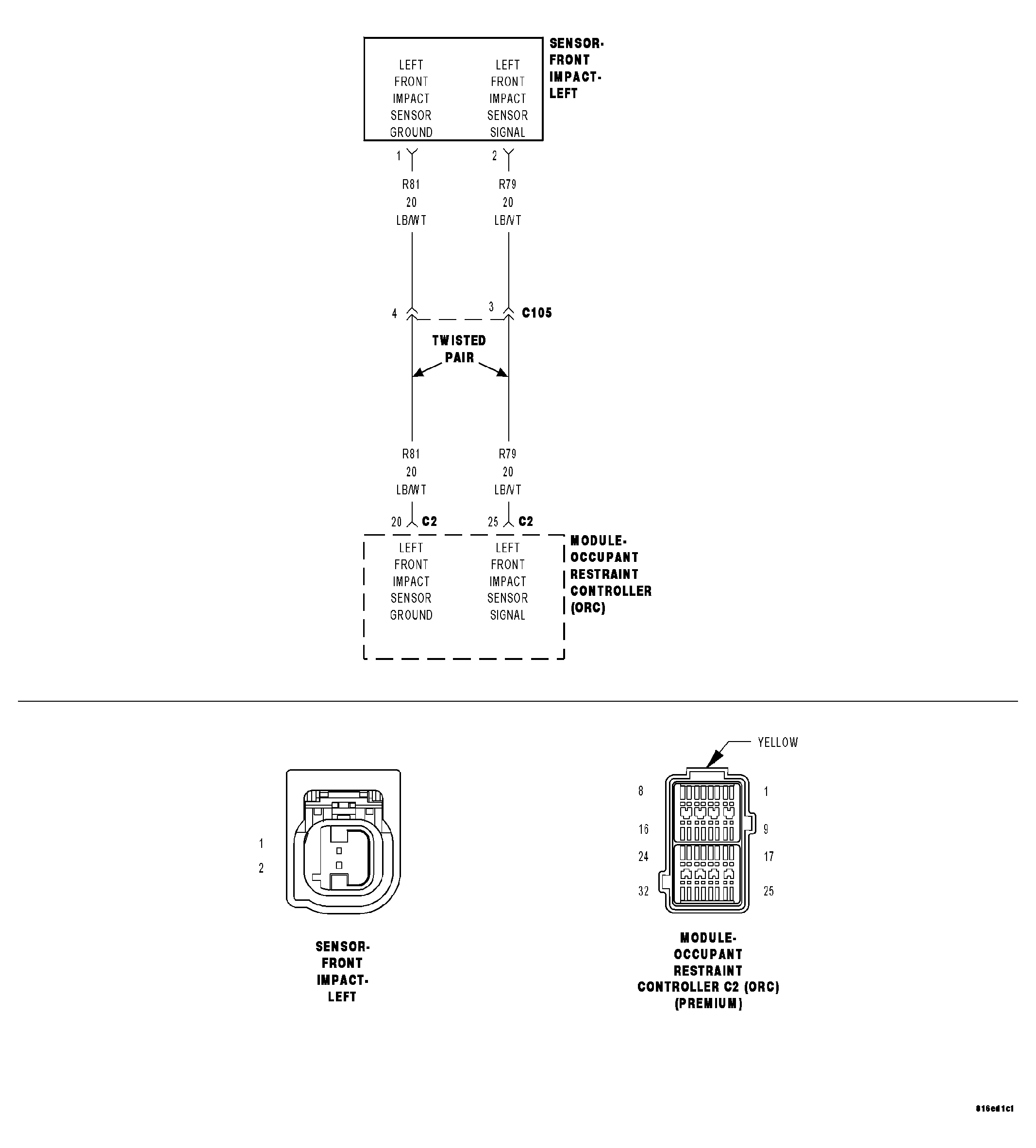

Home >> Chrysler >> 2007 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> DTCS B1B21 To B1B82 >> B1B70-Up-Front Left Satellite Acceleration Sensor Internal >> Circuit Schematic
