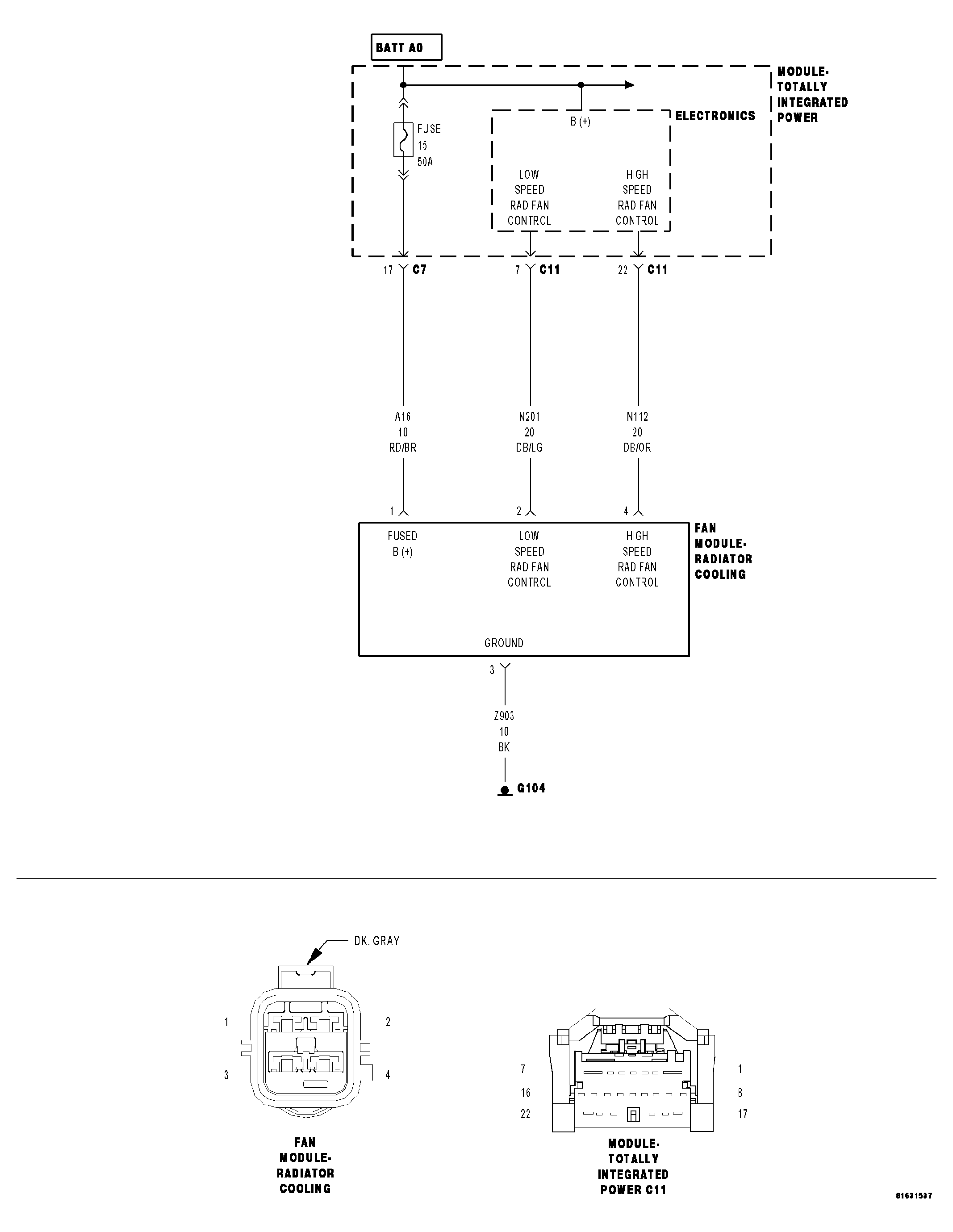

Home >> Chrysler >> 2007 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0340 To P050B >> P0480-Cooling Fan 1 Control Circuit >> Circuit Schematic
