Home >> Chrysler >> 2007 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0129 To P0339 >> P0202-Fuel Injector 2 Circuit >> Circuit Schematic

Circuit Schematic

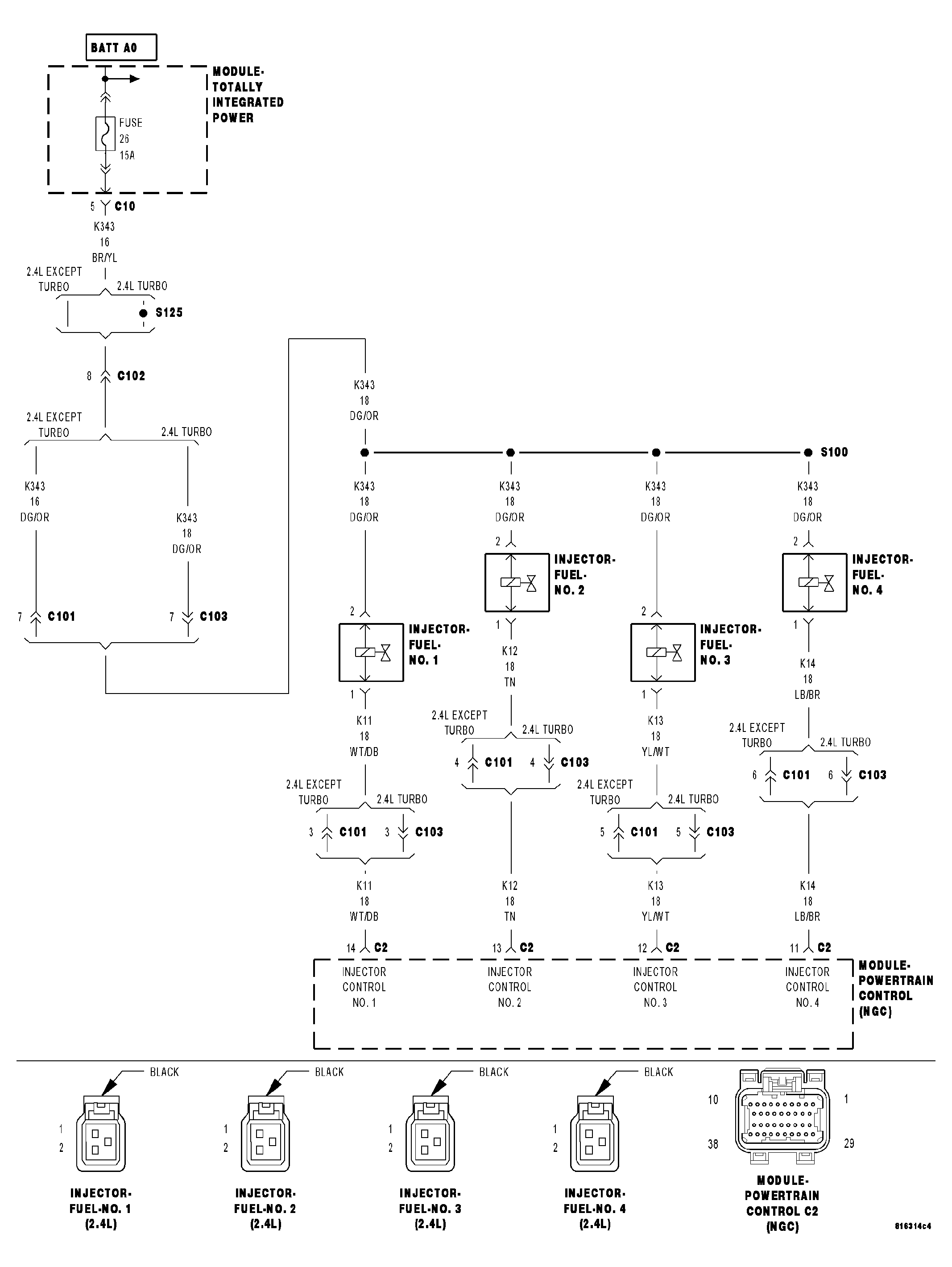

Fig 1: Fuel Injectors Circuit Schematic

GC0041605

Courtesy of CHRYSLER LLC
