Removal - 2.4L Turbo

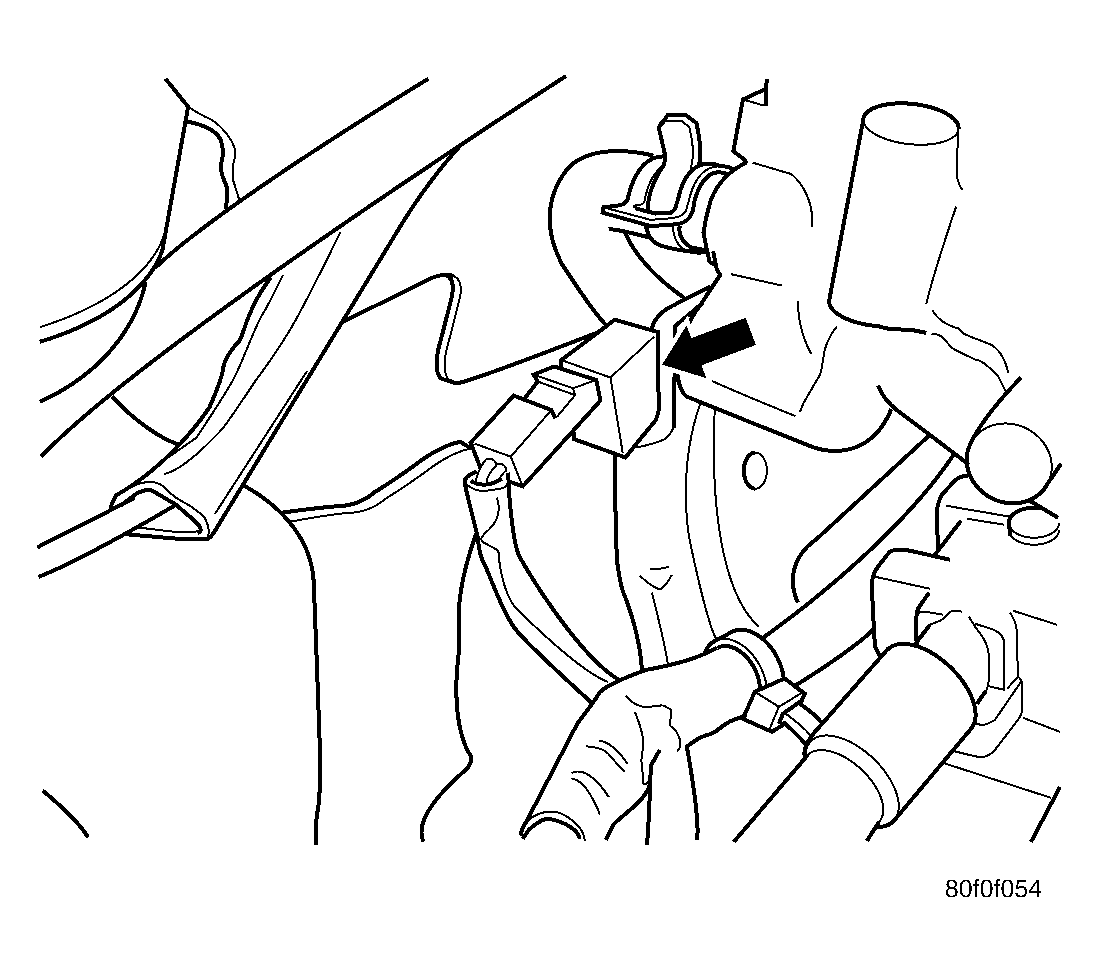

Fig 1: Coil Capacitor - 2.4L Turbo
GC0022913Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Remove the electrical connector from the ignition coil capacitor. See Fig 1.
  3. Remove mounting bolt and remove capacitor. See Fig 1.
