Circuit Schematic

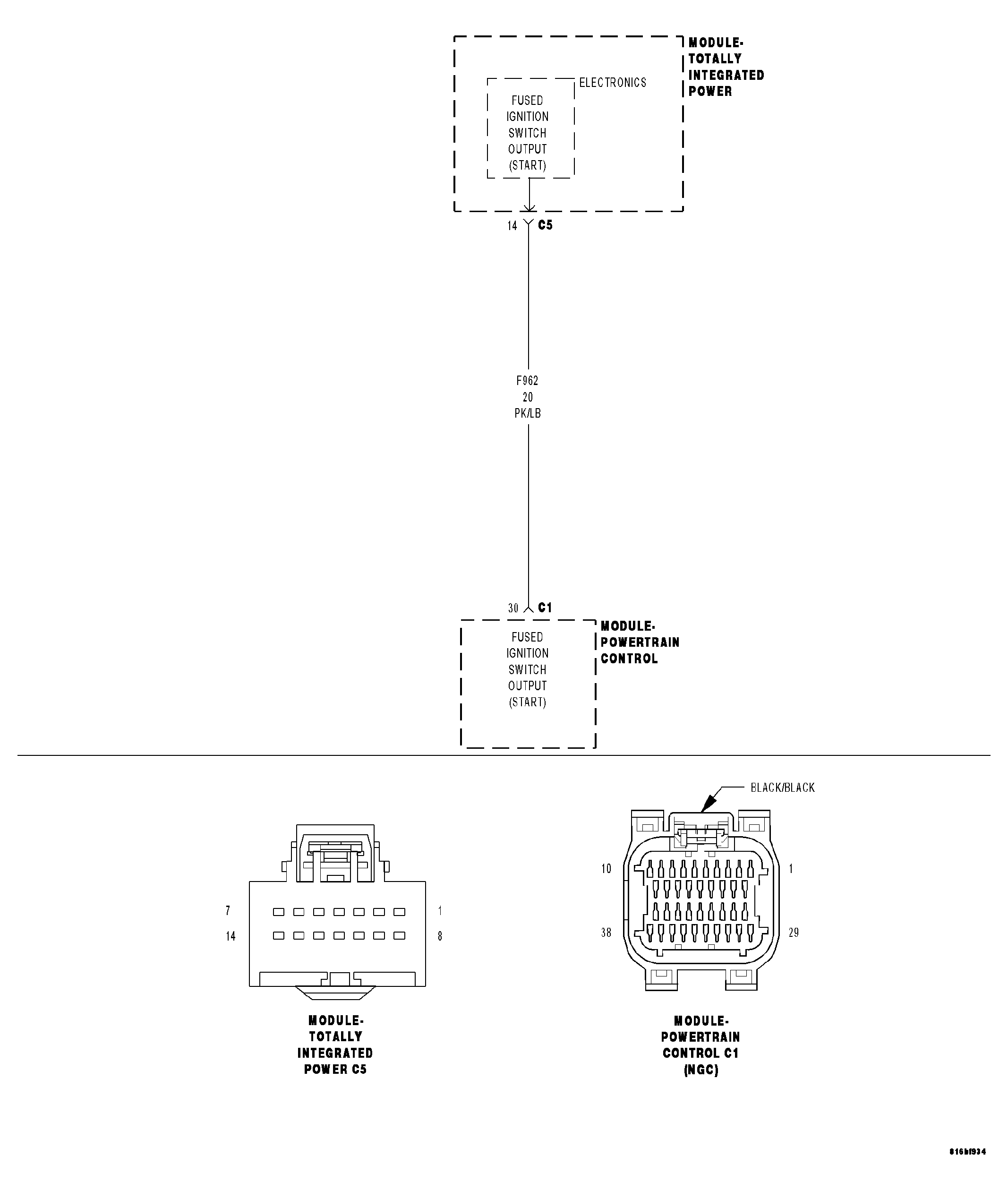

Fig 1: Ignition Start Control Circuit Schematic

GC0043563

Courtesy of CHRYSLER LLC
