Glow Plug

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: NOTE: Only remove the glow plugs with the engine at operating temperature.
  1. Disconnect the negative battery cable.
  2. Remove the engine cover.

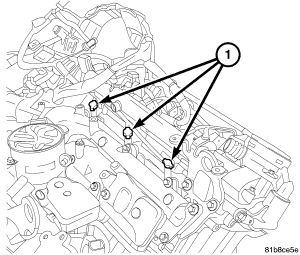

    Fig 1: Glow Plug Wiring Harness Connectors
    GC0065524Courtesy of CHRYSLER LLC
  3. Use special tool #9286 pliers to unplug the glow plug wiring harness connector(s) (1) at the glow plug.

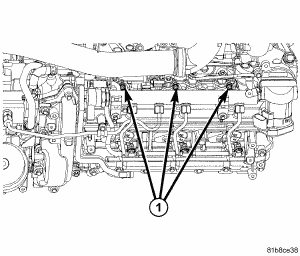

    Fig 2: Glow Plugs
    GC0065525Courtesy of CHRYSLER LLC
  4. Remove the glow plug(s) (1).
