Fluid Level Check

  1. Raise and support the vehicle.

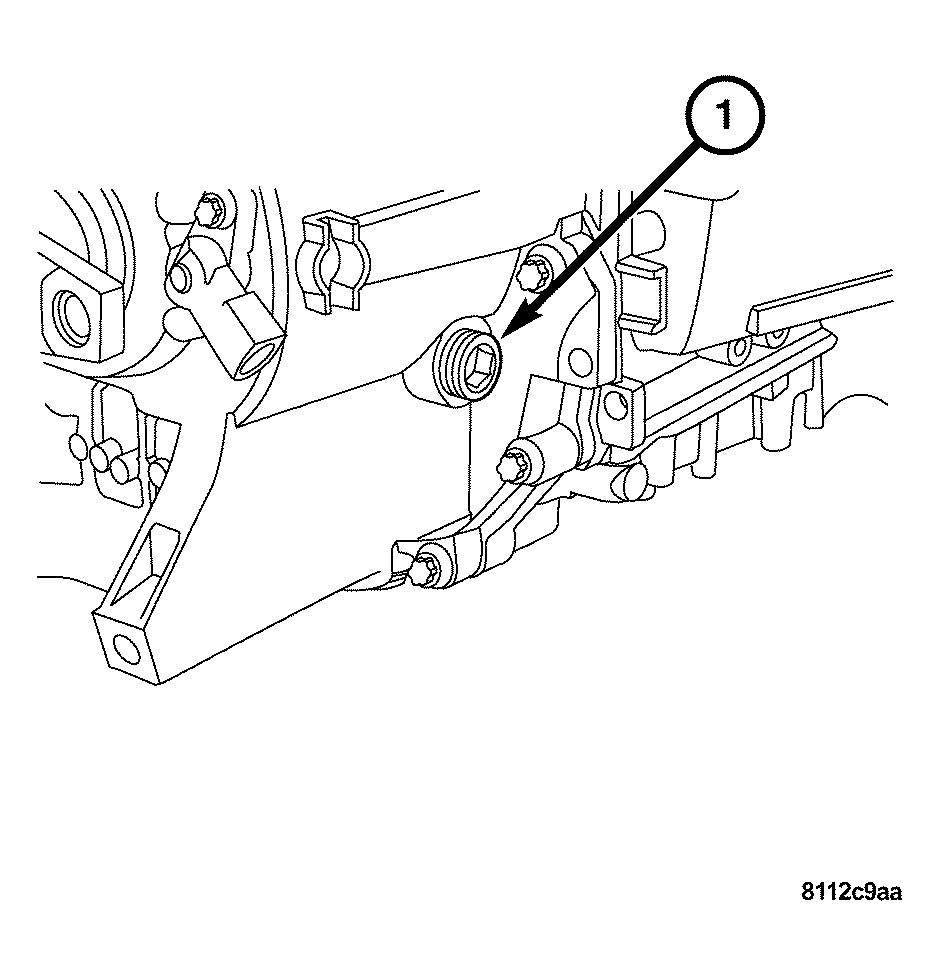

    Fig 1: Locating Fill Plug
    GC0032886Courtesy of CHRYSLER LLC
  2. Remove the transmission fill plug (1).
  3. The full fluid level should be at the base of the fill plug threaded hole. If the fluid is low, check for visible transmission fluid leaks and top off the fluid level.
  4. Install and tighten the fill plug (1) to 50 N.m (37 ft. lbs.).
  5. Lower the vehicle.
