Passenger Power Seat Connector End View

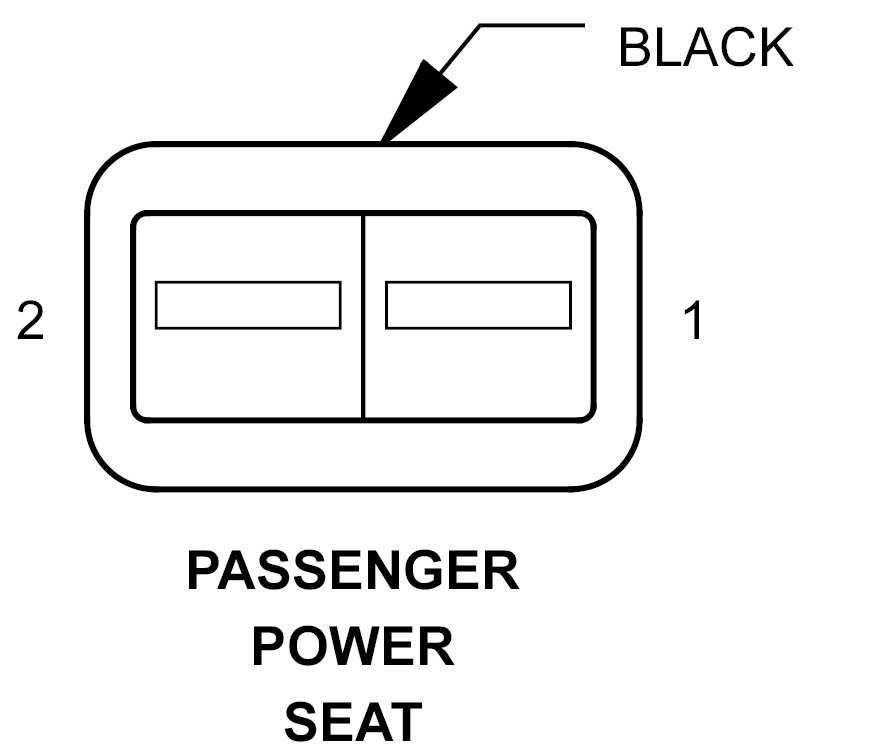

PASSENGER POWER SEAT - BLACK 2-WAY

GZH780175Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 14RD/DG FUSED POWER SEAT RELAY OUTPUT
2 14BR GROUND
