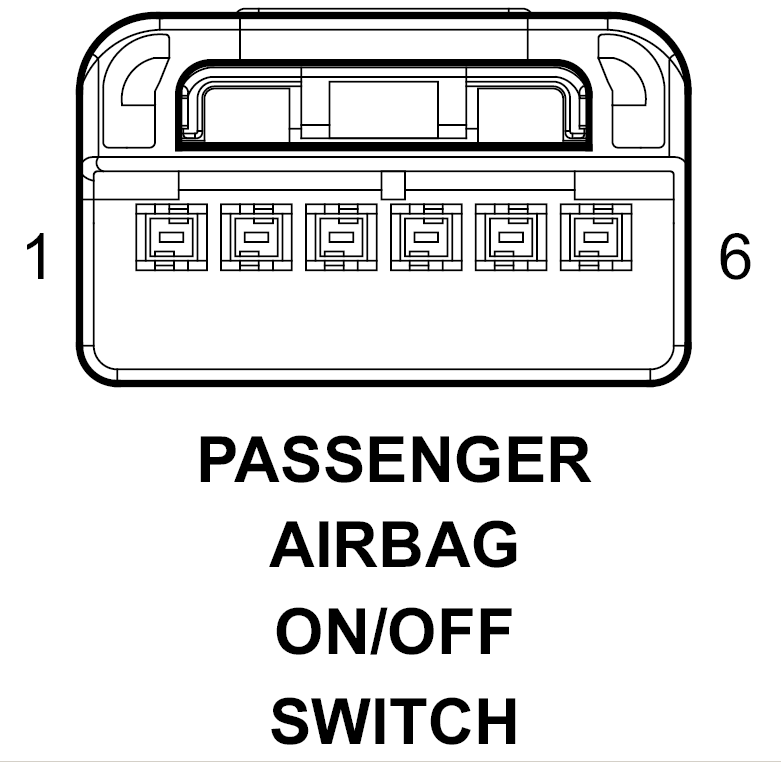

Passenger Airbag On Off Switch Connector End View
PASSENGER AIRBAG ON/OFF SWITCH - 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BL/WT |
AIRBAG ON/OFF SWITCH SENSE (ON) |
| 2 |
20GY |
AIRBAG ON/OFF SWITCH SENSE (OFF) |
| 3 |
20BR |
GROUND |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
- |
- |
