Left Turn Signal Lamp (Export) Connector End View

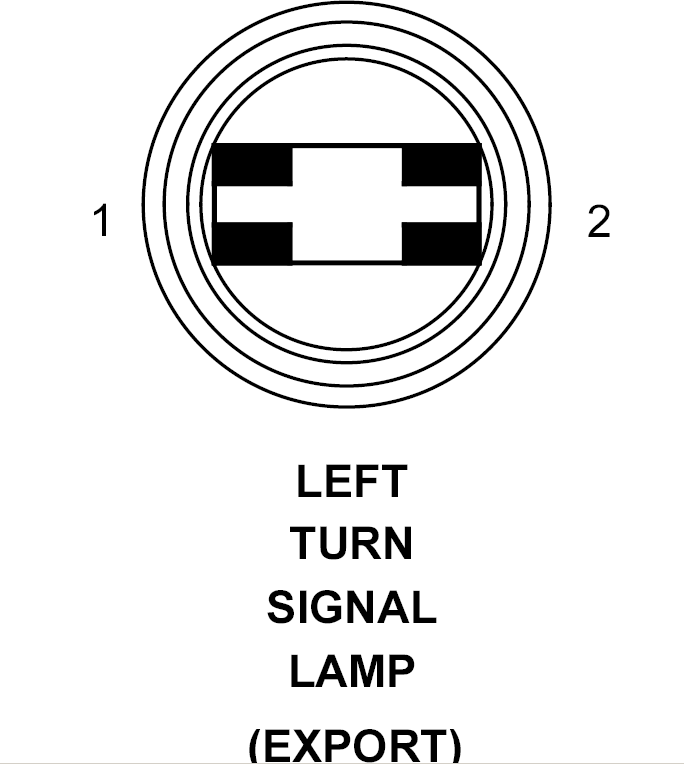

LEFT TURN SIGNAL LAMP - 2-WAY (EXPORT)

GZH780160Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR GROUND
2 18BK/WT LEFT TURN SIGNAL OUTPUT
