Driver Seat Belt Switch Connector End View

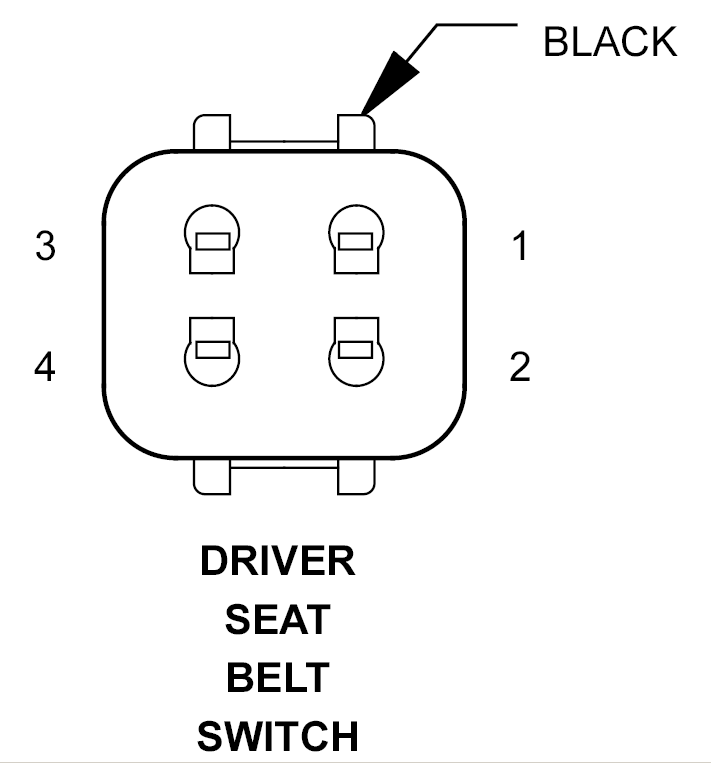

DRIVER SEAT BELT SWITCH - BLACK 4-WAY

GZH780101Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
2 20GY/DG DRIVER SEAT BELT SWITCH SENSE
3 20BR GROUND
4 20BR/DG DRIVER SEAT BELT SWITCH SENSE
