Flex Plate

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

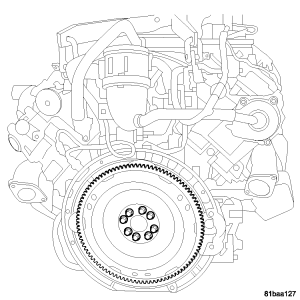

Fig 1: Flywheel
GC0066229Courtesy of CHRYSLER LLC
  1. Position flex plate (1) with backing plate (3) on the crankshaft.
  2. Apply Mopar® Lock & Seal Adhesive to the (8) flex plate bolts.
  3. Install flex plate bolts in a cross pattern (2) and tighten the bolts to 20 N.m (177 in. lbs.) and then to 45 N.m (33 ft. lbs.) and then tighten the bolts an additional 90 degrees.
  4. Tighten the flex plate bolts an additional
  5. Install the transaxle.
