Hoist Locations
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

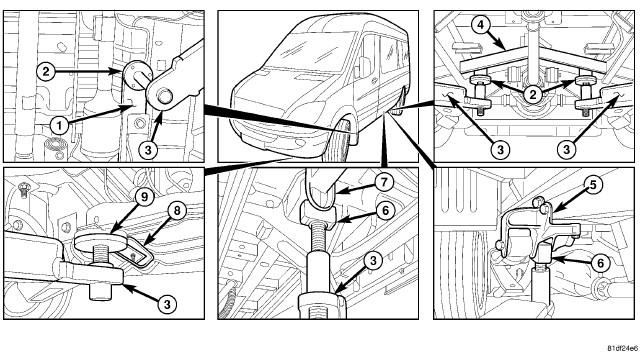

| ITEM | WORK INSTRUCTIONS |
|---|---|
| 1 - FRONT LONGITUDINAL MEMBER | For work which requires the front axle to be removed. |
| 2 - LONG SUPPORT PLATE | In vehicle without noise abatement measures for front holder at longitudinal member (1). |
| - | For front support to longitudinal member (1). |
| - | Can be used alternatively to front support to spring clamp plate (8). |
| - | In vehicles with low frames at subframe (4) in the vicinity of inner semi-trailing arm holders. |
| - | Pull out long support plates (2) and left and equal distance. |
| 3 - LIFT PLATFORM SUPPORT ARM | Two-post lift |
| 4 - SUBFRAME | For use on vehicles with lower frames. |
| 5 - SPRING BRACKET | Can be used for all cab and crew cab vehicles. |
| 6 - V-BLOCK | Pull long support plate (2) at right and left front out and equal distance. |
| - | For the rear jack tube on front rear spring bracket (5) and rear jack tube on longitudinal frame member (7) |
| - | Pull V-block (6) at right and left rear out and equal distance. |
| 7 - LONGITUDINAL FRAME MEMBER | - |
| 8 - SPRING CLAMP PLATE | - |
| 9 - SUPPORT PLATE | - |
1 - FRONT LONGITUDINAL MEMBER
- For work which requires the front axle to be removed.
2 - LONG SUPPORT PLATE
- In vehicle without noise abatement measures for front holder at longitudinal member (1).
- For front support to longitudinal member (1).
- Can be used alternatively to front support to spring clamp plate (8).
- In vehicles with low frames at subframe (4) in the vicinity of inner semi-trailing arm holders.
- Pull out long support plates (2) and left and equal distance.
