Sensor-Knock - 3.5L - Left

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the upper intake manifold. Refer to REMOVAL .

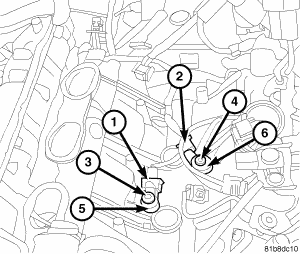

    Fig 1: Right And Left Knocks Sensors, Harness Connectors And Bolts
    GC0065529Courtesy of CHRYSLER LLC
  3. Disconnect the Left Knock Sensor harness connector (2).
  4. Disconnect the Left Knock Sensor bolt (4).
    Fig 2: Right And Left Knocks Sensors, Harness Connectors And Bolts
    GC0065529Courtesy of CHRYSLER LLC
  5. Remove the Left Knock sensor (6).
