P2008-Short Runner Solenoid Circuit: Notes
- When Monitored: Engine running
- Set Condition: When the PCM is commanding the Short Runner Valve Solenoid on and doesn't detect voltage at the control circuit.
| Possible Causes |
|---|
| SHORT RUNNER VALVE SOLENOID CONTROL CIRCUIT OPEN |
| SHORT RUNNER VALVE SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE |
| SHORT RUNNER VALVE SOLENOID CONTROL CIRCUIT SHORT TO GROUND |
| ENGINE CONTROL RELAY OUTPUT CIRCUIT OPEN |
| SHORT RUNNER VALVE SOLENOID |
| POWERTRAIN CONTROL MODULE |

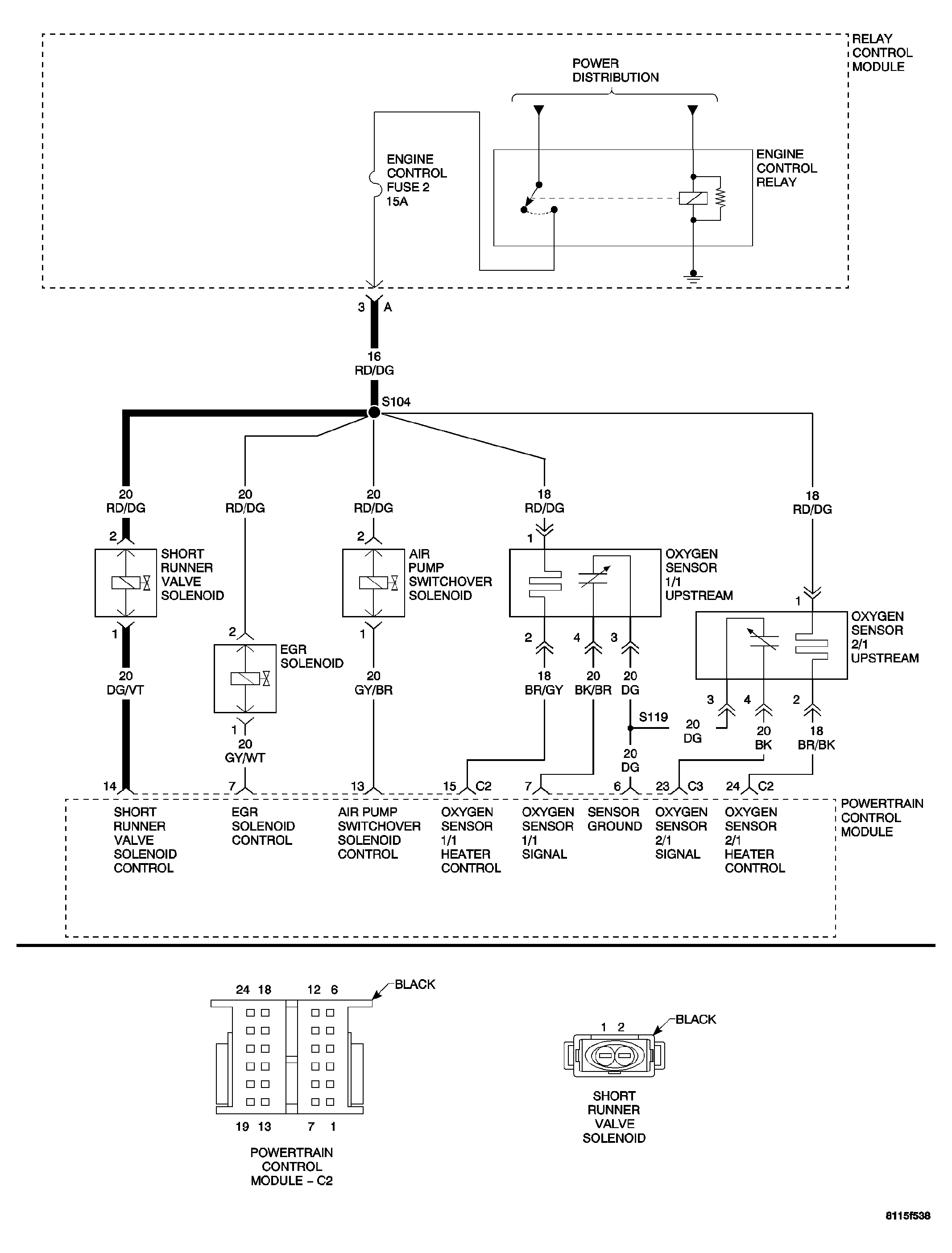

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
