Home >> Chrysler >> 2007 >> Aspen 4.7 P, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2122 To P2503 >> P2128-Accelerator Pedal Position Sensor 2 Circuit High >> Circuit Schematic

Circuit Schematic

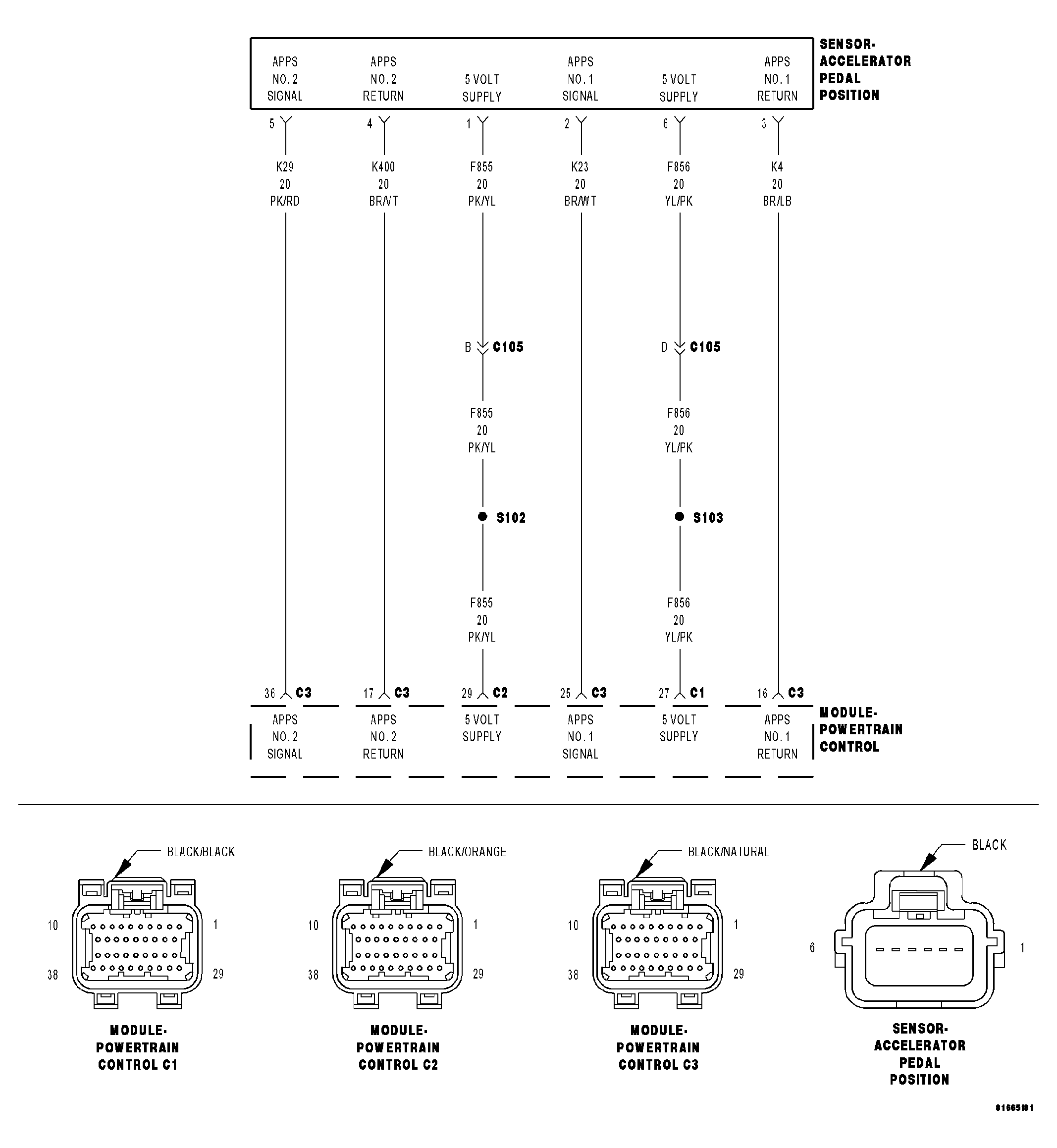

Fig 1: Accelerator Pedal Position Sensor Circuit Schematic

GC0043870

Courtesy of CHRYSLER LLC
