Home >> Chrysler >> 2007 >> 300 Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> 42RLE Automatic Transmission - Electrical Diagnostics >> DTC Troubleshooting >> P0935-Line Pressure Sensor Circuit High >> Circuit Schematic

Circuit Schematic

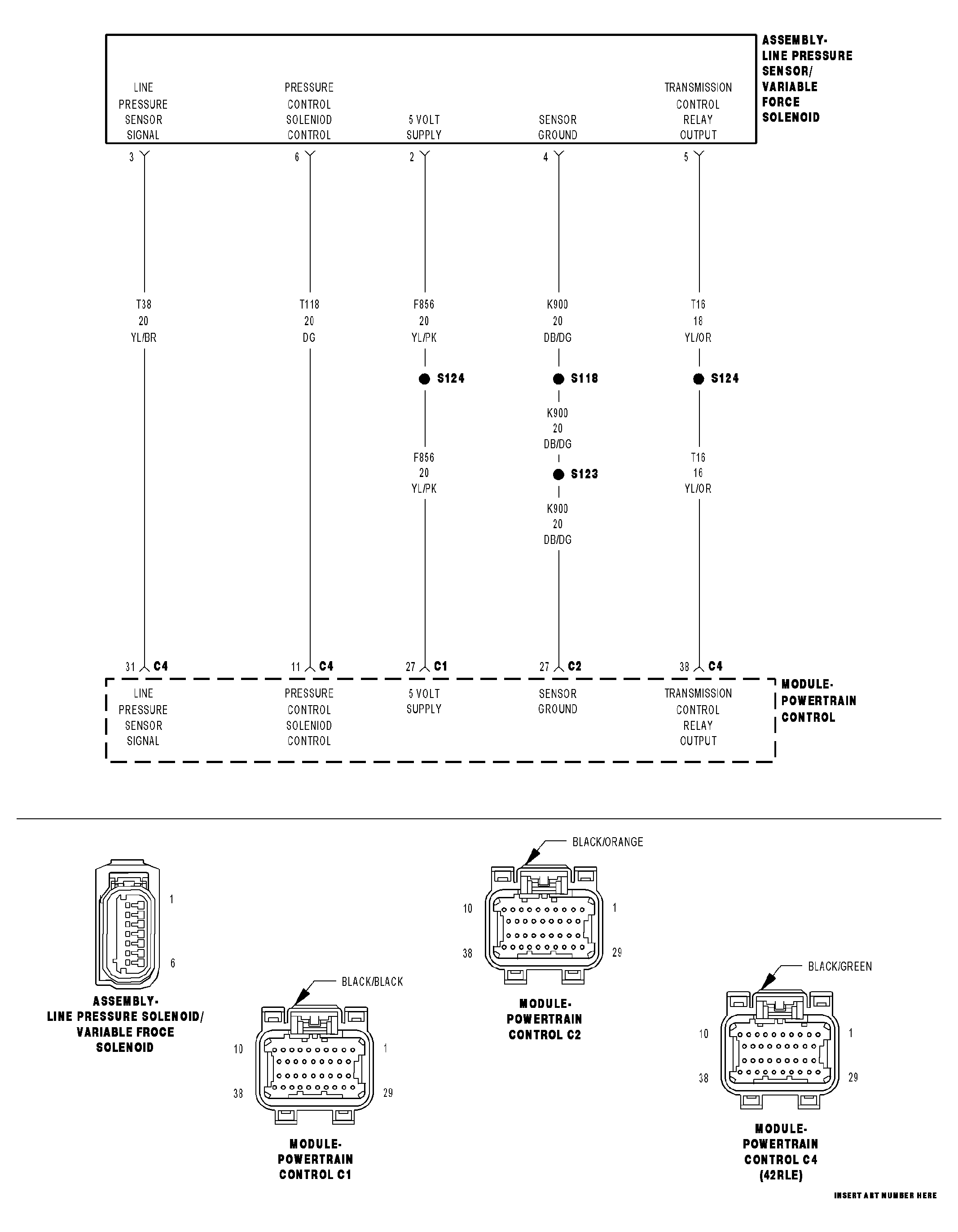

Fig 1: Line Pressure Sensor/Variable Force Solenoid Assembly Circuit Schematic

GC0038076

Courtesy of CHRYSLER LLC
