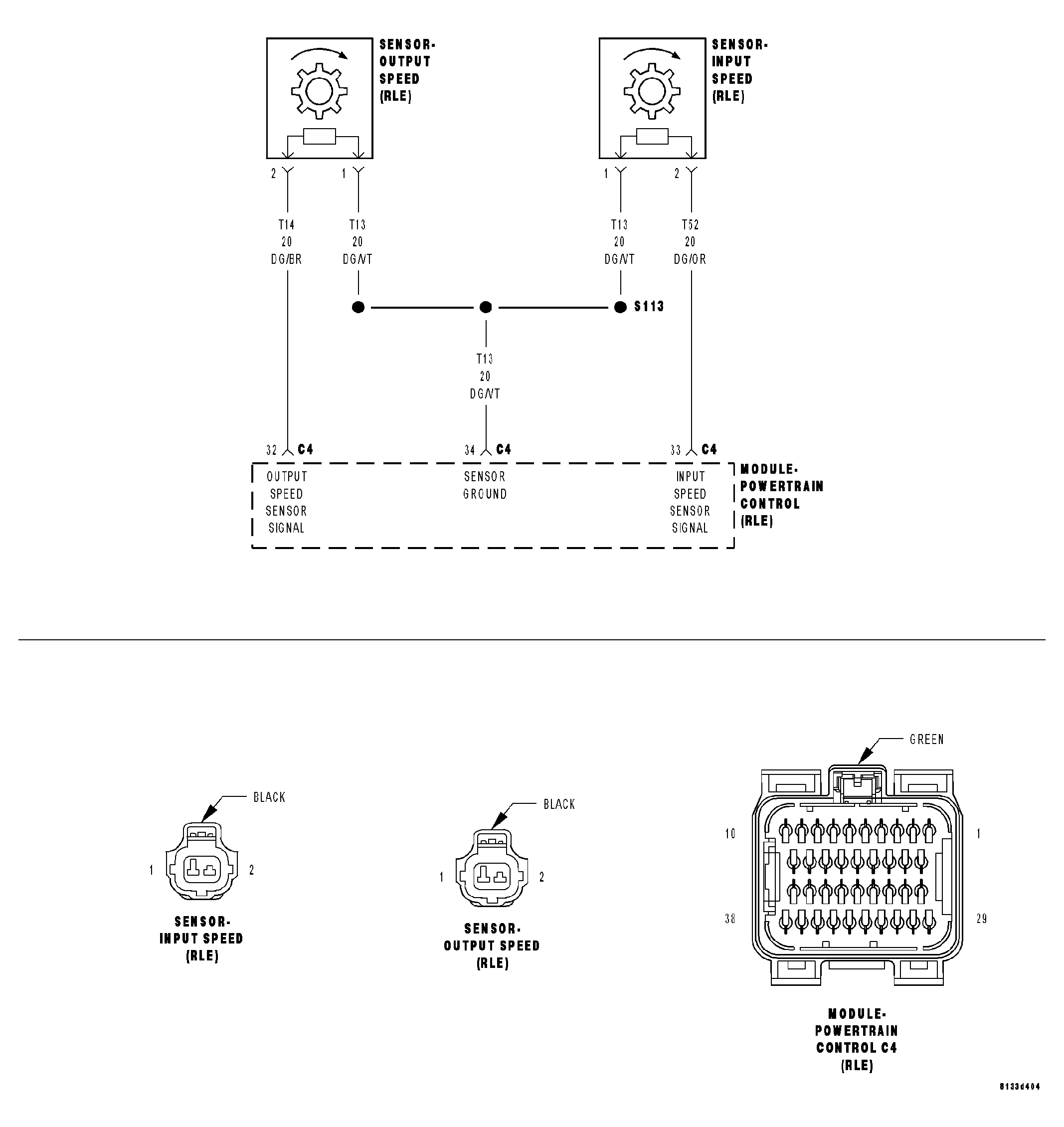

Home >> Chrysler >> 2007 >> 300 Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> 42RLE Automatic Transmission - Electrical Diagnostics >> DTC Troubleshooting >> P0716-Input Speed Sensor 1 Circuit Performance >> Circuit Schematic
