Engine Mounting - Front: Removal

WARNING: This page is about a different variant/trim than selected.

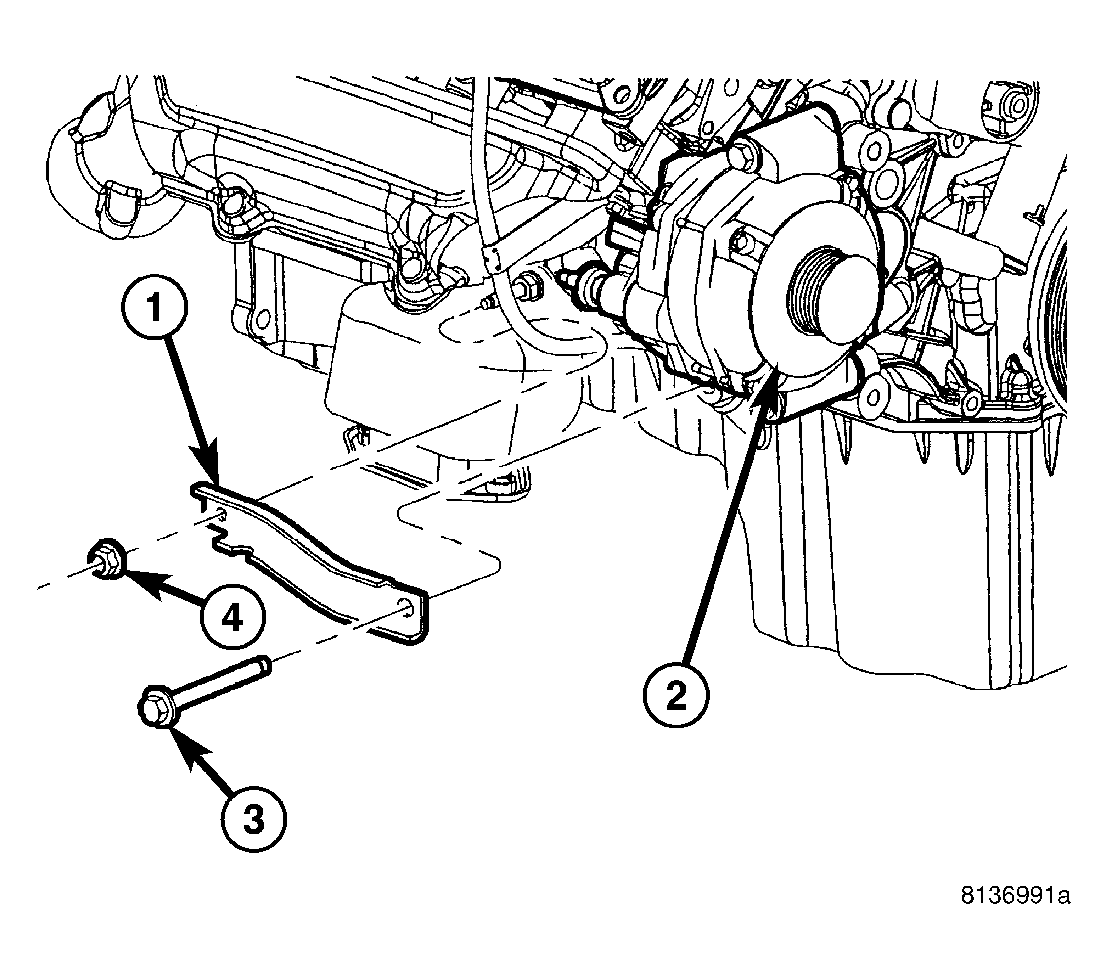

Fig 1: Generator Support Bracket

GC0040443

Courtesy of CHRYSLER LLC

Disconnect negative battery cable.
Raise vehicle.

Remove the generator support bracket (1).

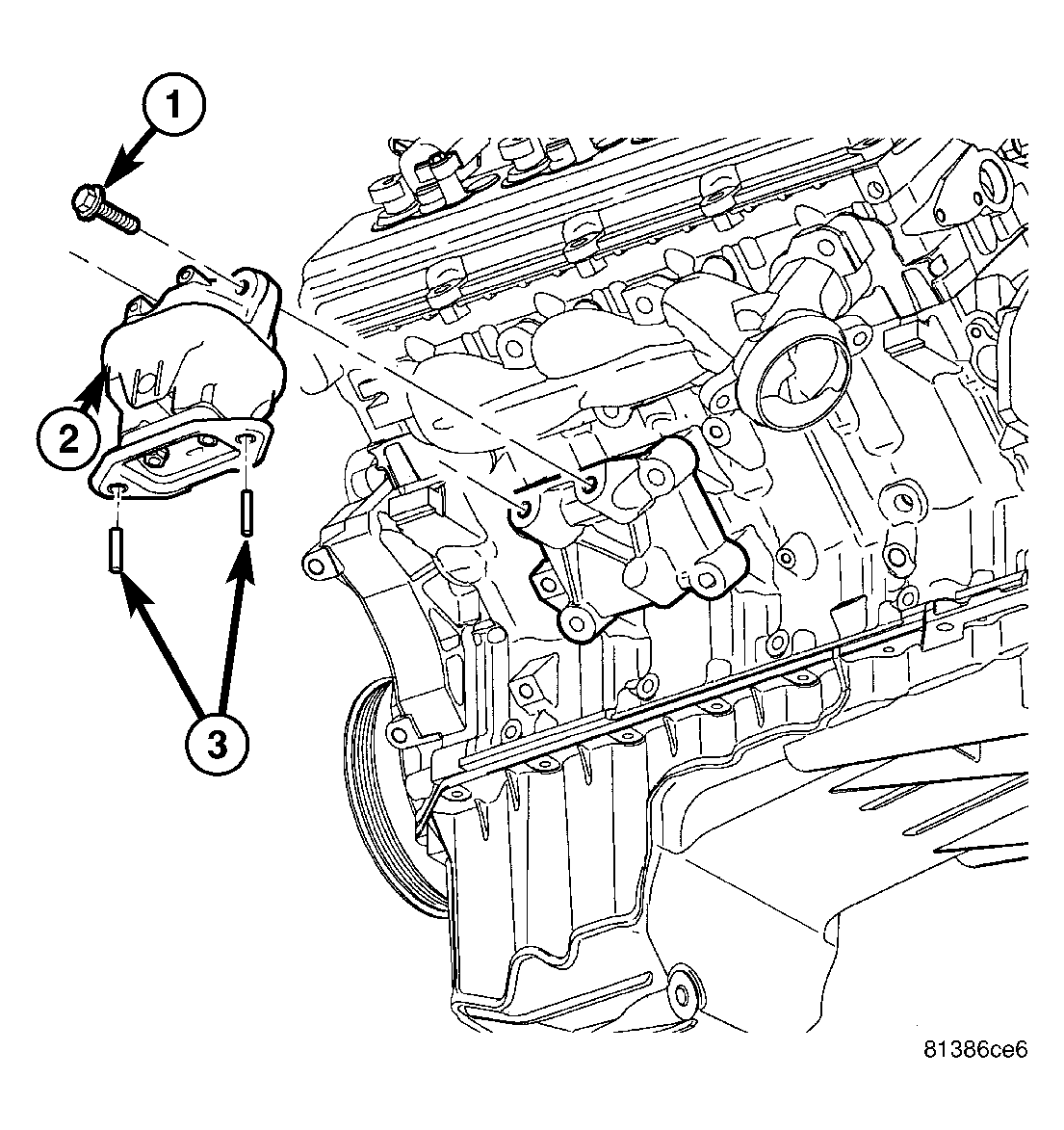

Fig 2: Hydromount

GC0040442

Courtesy of CHRYSLER LLC

1 - Bolt

2 - Hydromount

3 - Studs

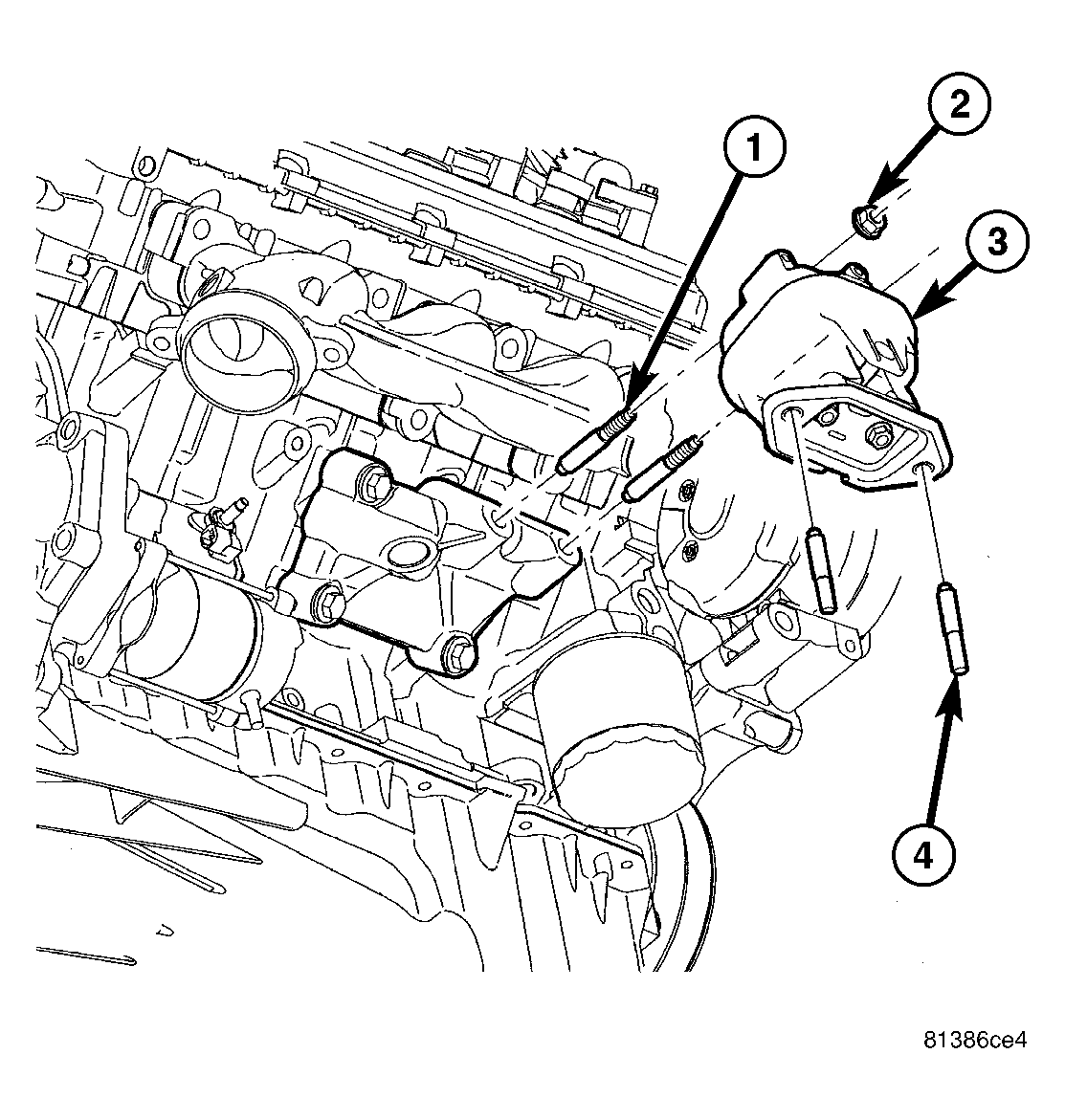

Fig 3: Hydromount

GC0040441

Courtesy of CHRYSLER LLC

1 - Studs

2 - Nut

3 - Hydromount

4 - Studs

Remove hydromount to frame studs (3, 4) and nuts.
Raise engine using suitable jack.
Remove hydromount to bracket fasteners (1, 2).
Remove hydromount from engine.

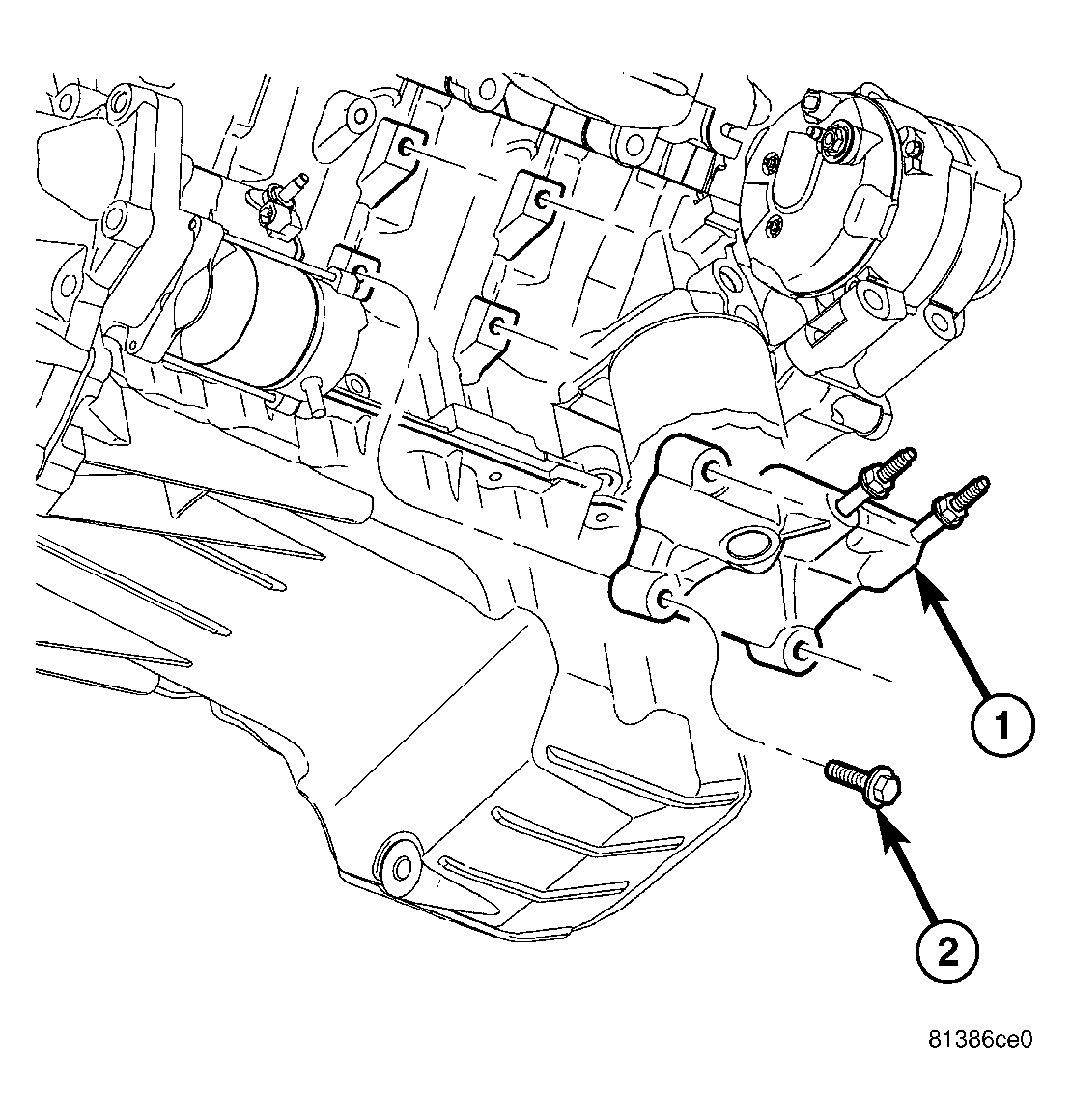

Fig 4: Engine Mount Bracket
Courtesy of CHRYSLER LLC

1 - Engine Mount Bracket

2 - Bolt

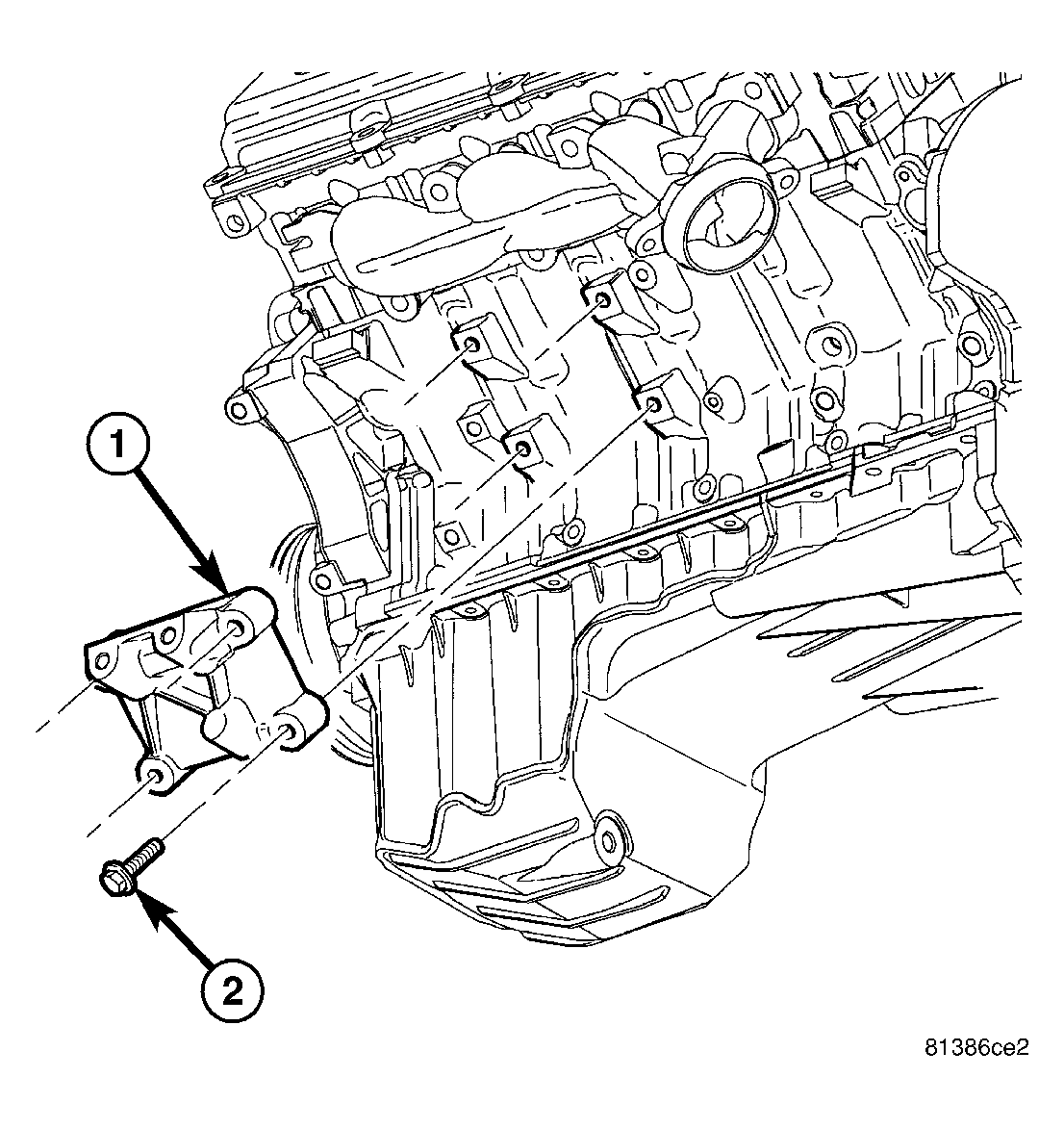

Fig 5: Engine Mount Bracket
Courtesy of CHRYSLER LLC

1 - Engine Mount Bracket

2 - Bolt
Remove engine mount brackets (1), if needed.
