Section 4 (6.1L Engine (Service Information)): Description
WARNING: This page is about a different variant/trim than selected.

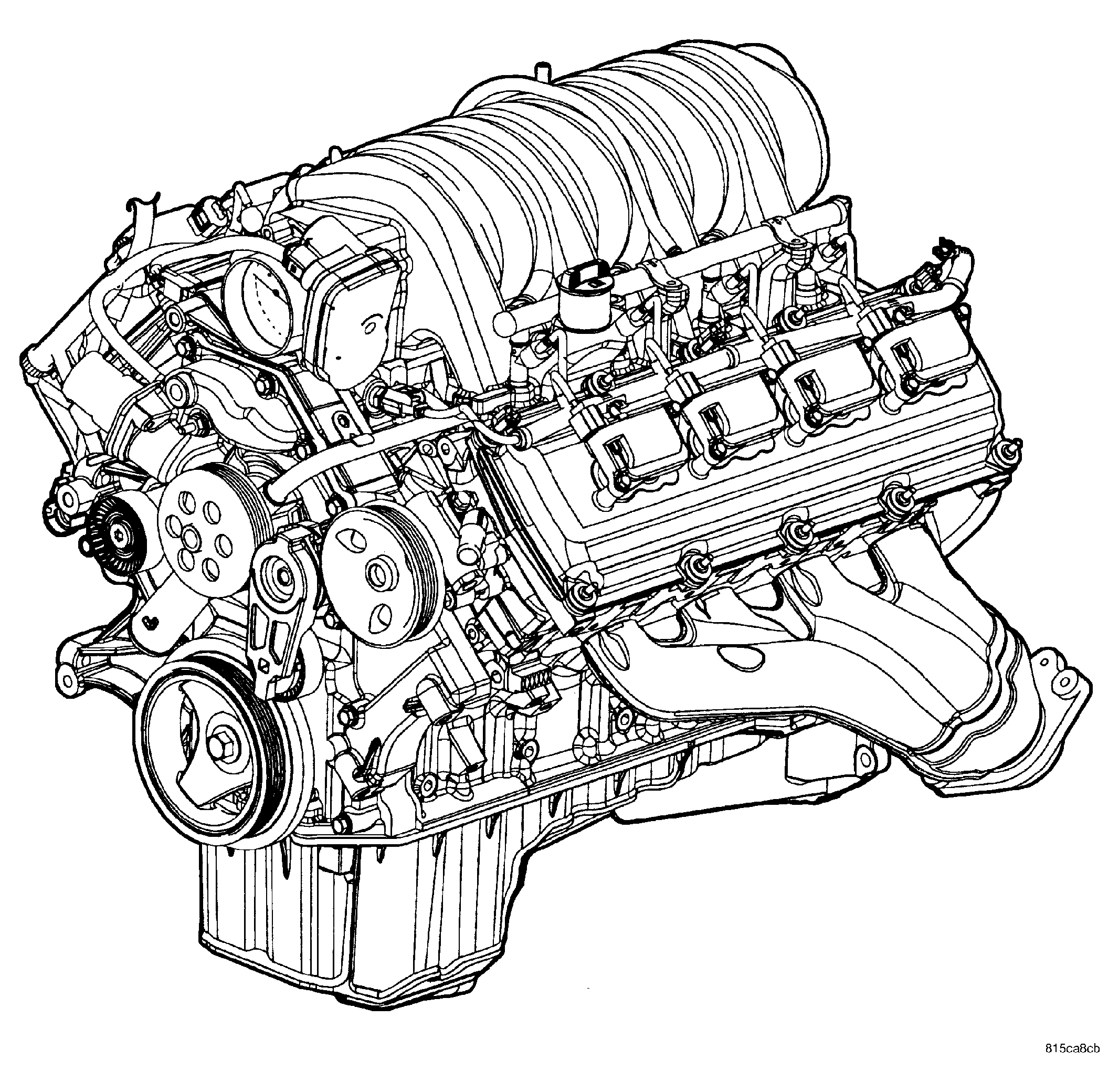

The 6.1L (370 CID) eight-cylinder engine is a 90° V-Type, deep skirt, lightweight cast iron block with aluminum heads, single cam, overhead valves, and hydraulic roller tappets. See Fig 1. The heads incorporate splayed valves with a hemispherical style combustion chamber and dual spark plugs. The cylinders are numbered from front to rear; 1, 3, 5, 7 on the left bank and 2, 4, 6, 8 on the right bank. The firing order is 1-8-4-3-6-5-7-2.
