Installation - AWD

WARNING: This page is about a different variant/trim than selected.

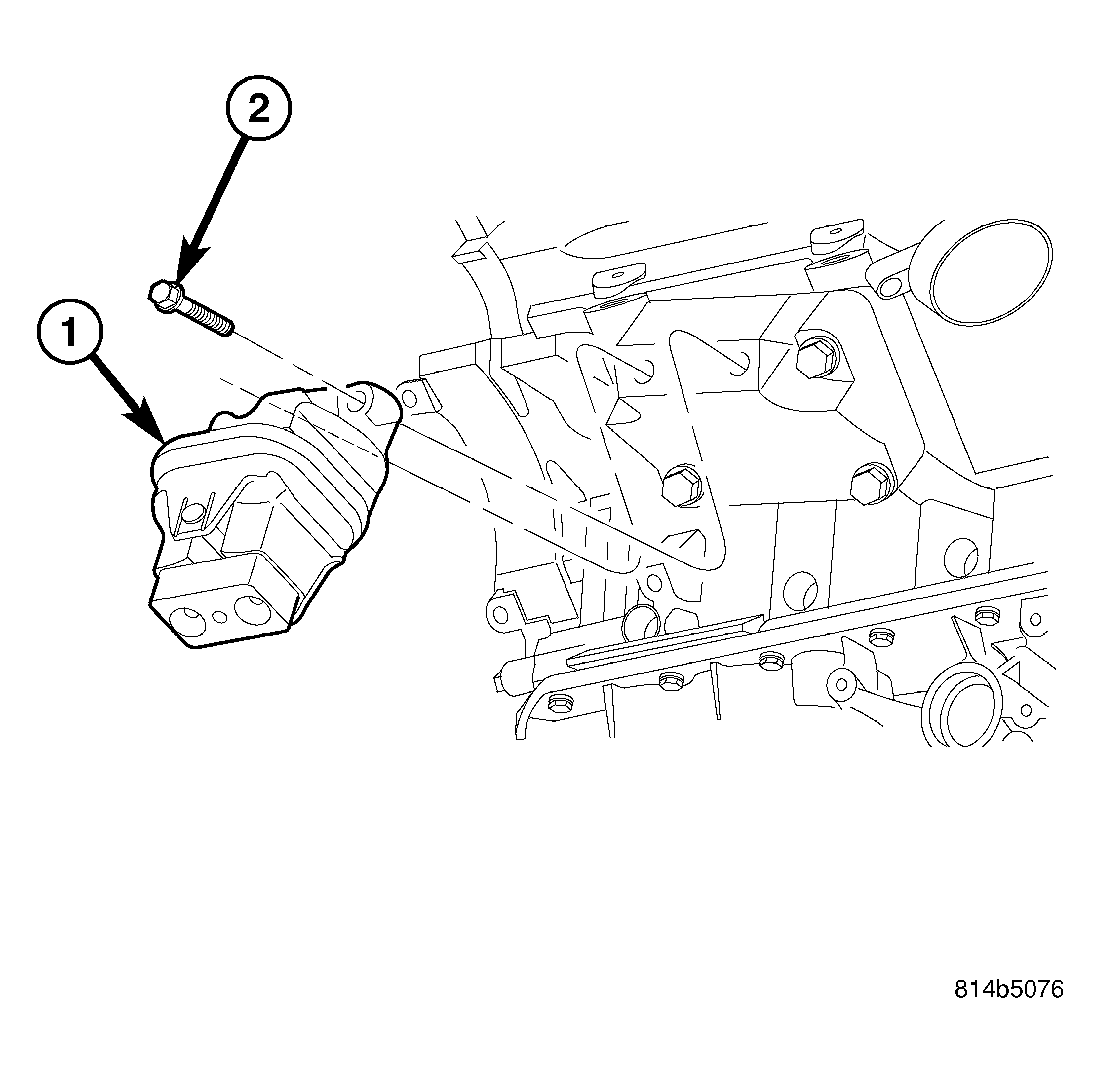

Fig 1: Left Hydromount - 5.7L - AWD
GC0015469Courtesy of CHRYSLER LLC
1 - HYDROMOUNT
2 - BOLT

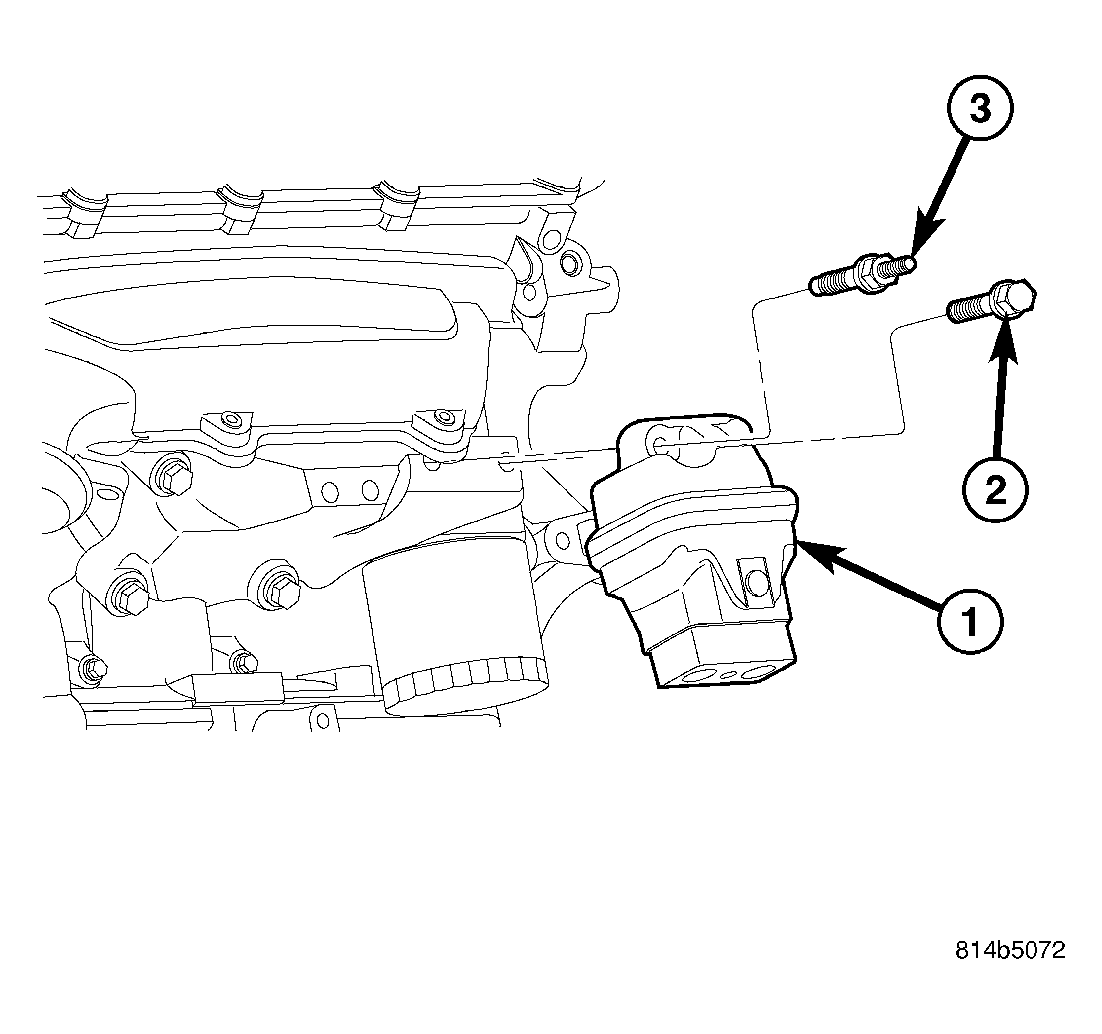

Fig 2: Right Hydromount - 5.7L - AWD
GC0015468Courtesy of CHRYSLER LLC
1 - HYDROMOUNT
2 - BOLT
3 - STUD
  1. Install the engine mount brackets, if removed.
  2. Install hydromount (1) on the engine. Tighten hydromount to bracket fasteners.
  3. Install the fasteners to the hydromount (2,3,).
  4. Install the generator support bracket.

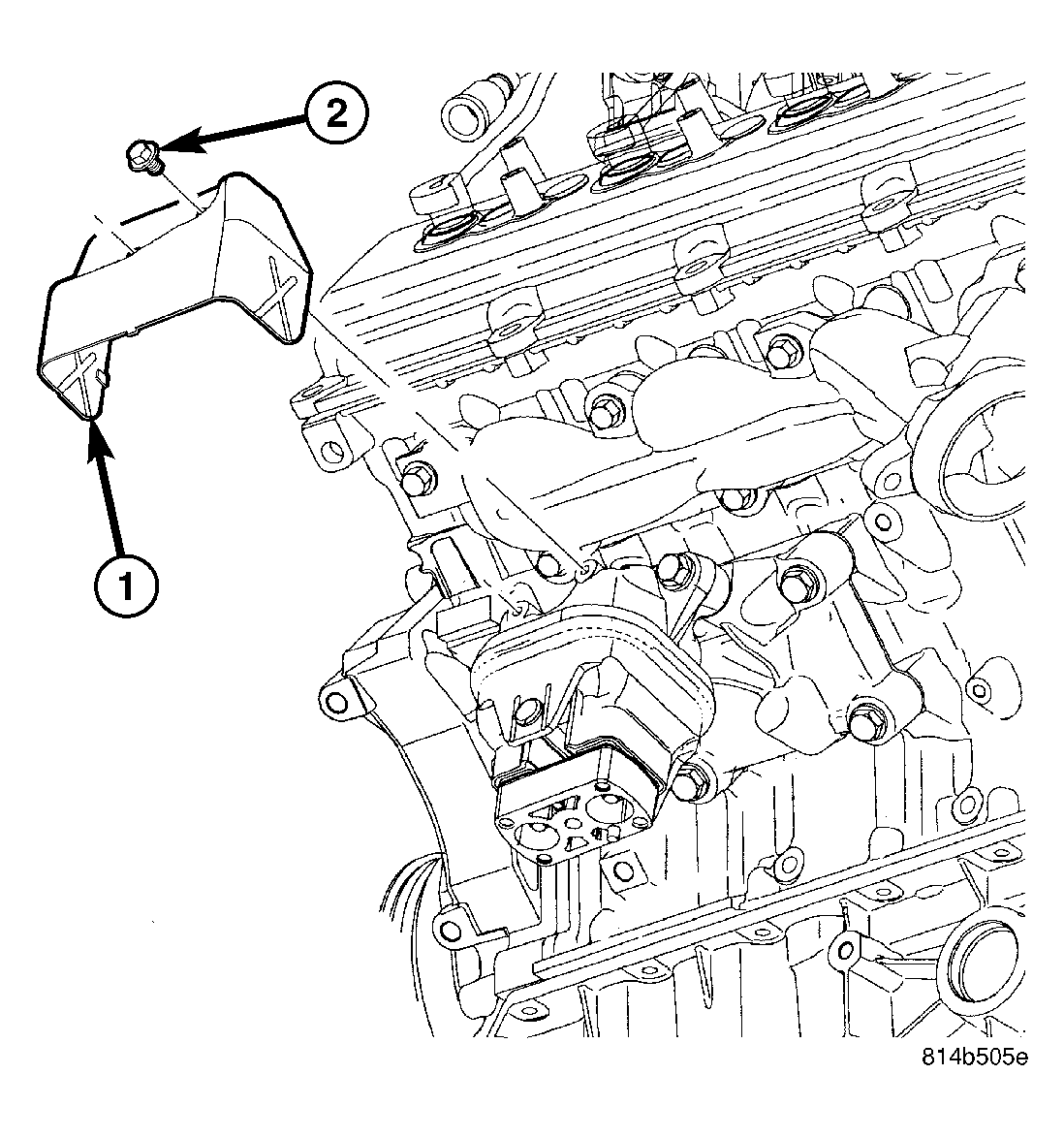

    Fig 3: Left Heat Shield - 5.7L AWD
    GC0015467Courtesy of CHRYSLER LLC
    1 - HEAT SHIELD
    2 - BOLT

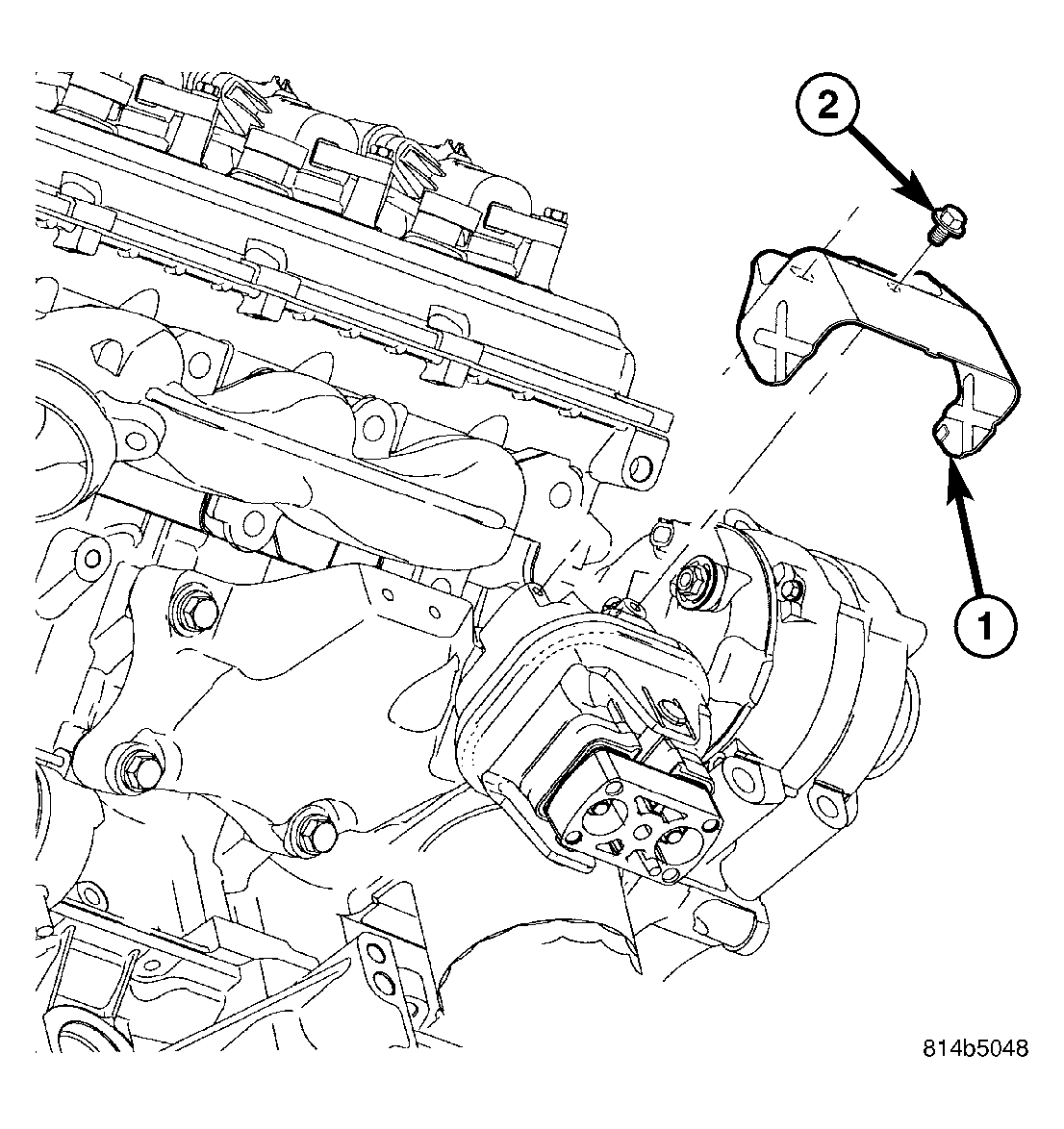

    Fig 4: Right Heat Shield - 5.7L AWD
    GC0015466Courtesy of CHRYSLER LLC
    1 - HEAT SHIELD
    2 - BOLT
  5. Install the heat shields (1).
  6. Lower the engine.
    Fig 5: Left Hydromount - 5.7L - AWD
    GC0015469Courtesy of CHRYSLER LLC
    1 - HYDROMOUNT
    2 - BOLT
    Fig 6: Right Hydromount - 5.7L - AWD
    GC0015468Courtesy of CHRYSLER LLC
    1 - HYDROMOUNT
    2 - BOLT
    3 - STUD
  7. Install the hydromount (1) to frame nuts on the studs, and tighten.
  8. Lower vehicle.
  9. Connect negative battery cable.
