Home >> Chrysler >> 2007 >> 300 Base >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0325 To P0456 >> P0340-Camshaft Position Sensor Circuit 5.7L >> Circuit Schematic

Circuit Schematic

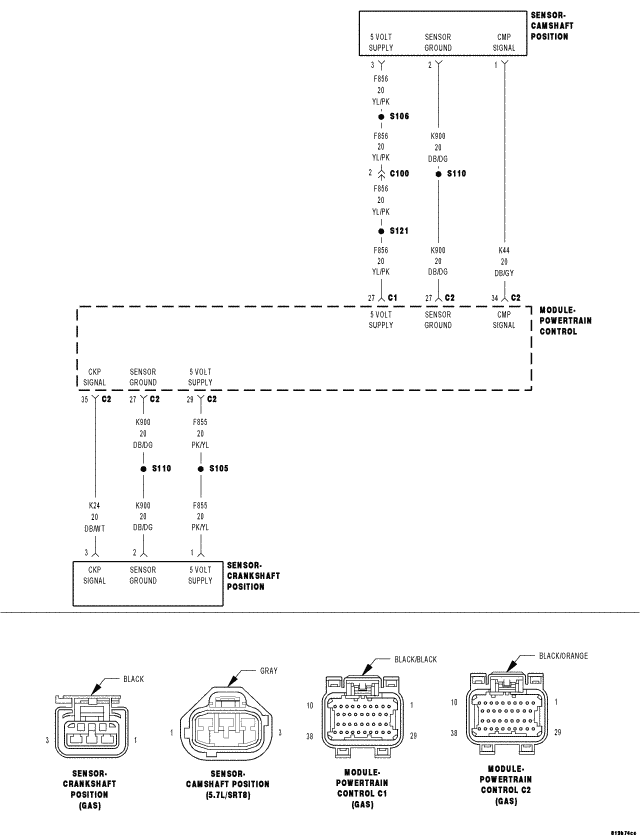

Fig 1: Camshaft Position Sensor Circuit Schematic

GC0052640

Courtesy of CHRYSLER LLC
