Liftgate Lock Switch: Removal

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

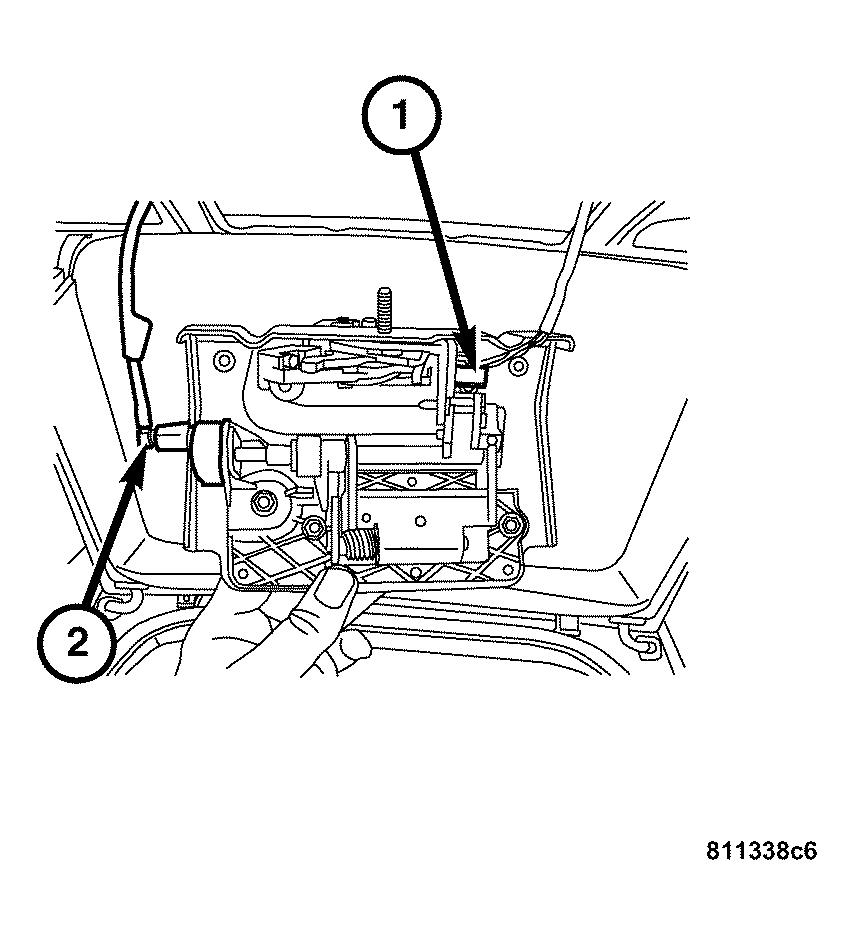

Fig 1: Identifying Harness Connectors At Lock Actuator & Lock Switch
GC0033147Courtesy of DAIMLERCHRYSLER CORP.

The liftgate lock switch (1) is serviced with the liftgate latch assembly. For complete liftgate latch removal procedures, (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/LATCH - REMOVAL) .
