*No Response From Controller Antilock Brake: Notes
WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

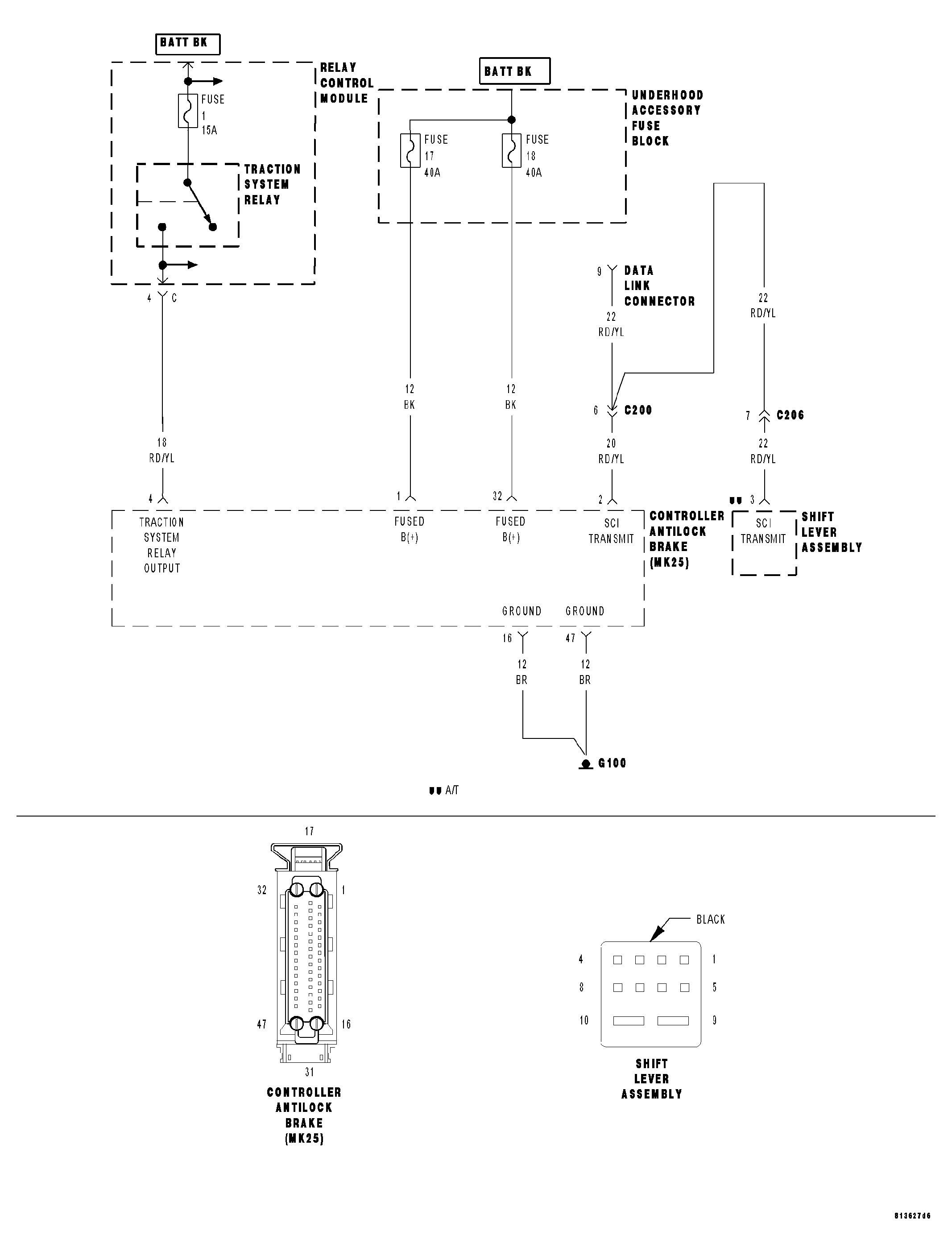

| POSSIBLE CAUSES |
|---|
| FUSED B+ CIRCUIT(S) OPEN |
| TRACTION SYSTEM RELAY OUTPUT CIRCUIT OPEN |
| GROUND CIRCUIT(S) OPEN |
| SCI TRANSMIT CIRCUIT OPEN |
| SCI TRANSMIT CIRCUIT SHORTED TO GROUND |
| SCI TRANSMIT CIRCUIT SHORTED TO VOLTAGE |
| SHIFT LEVER ASSEMBLY |
| CONTROLLER ANTILOCK BRAKE MODULE |
For a complete Data Link Connector Circuit Diagram, (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES - SCHEMATICS AND DIAGRAMS) .
