*DRB III® Does Not Power Up: Notes

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

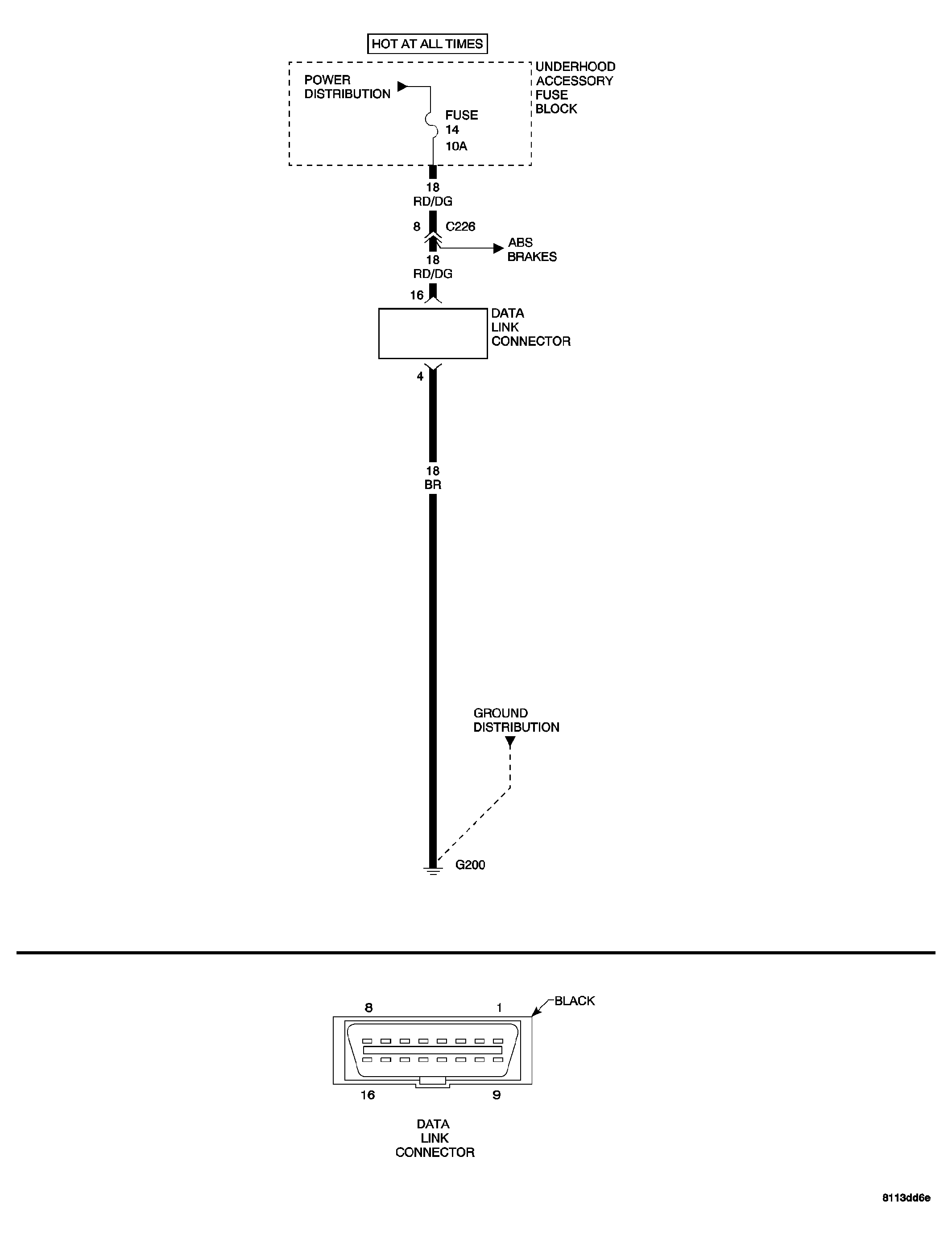

Fig 1: Data Link Connector Power & Ground Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

POSSIBLE CAUSES
FUSED B(+) CIRCUIT OPEN
GROUND CIRCUIT OPEN

For a complete Data Link Connector Circuit Diagram, (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES - SCHEMATICS AND DIAGRAMS) .
