Installation - Sentry Key Antenna Ring

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

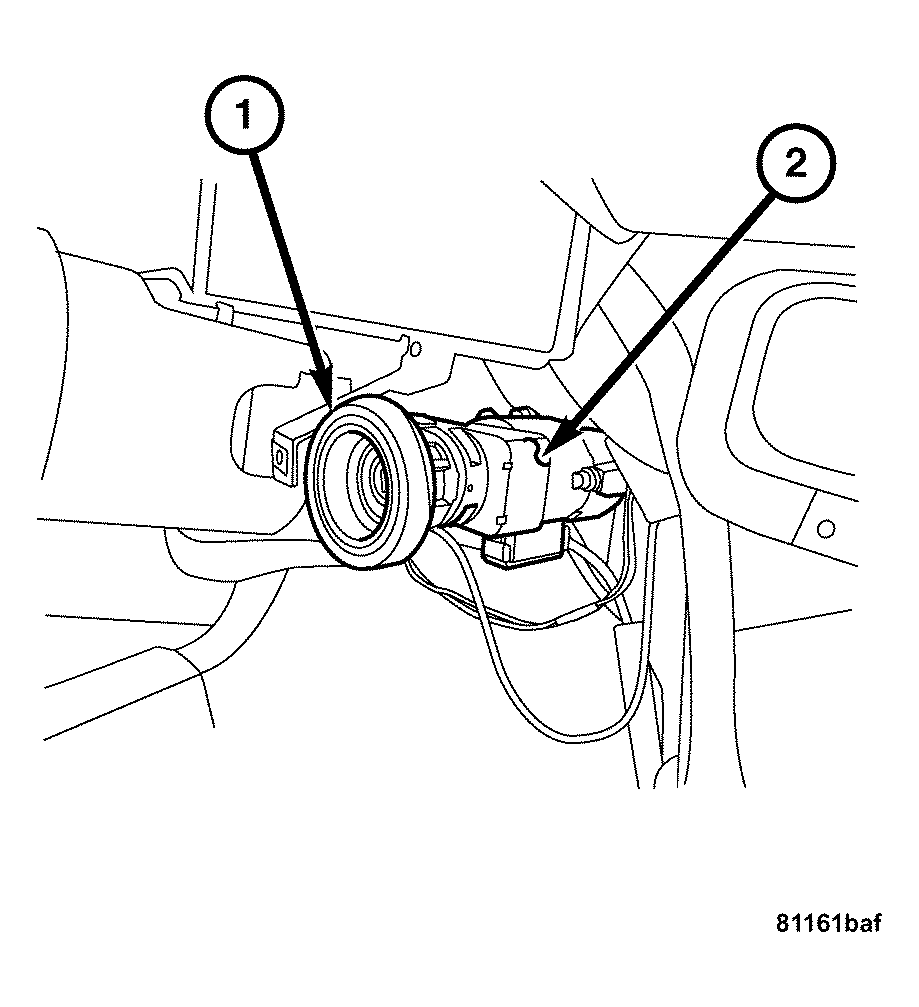

Fig 1: Identifying Sentry Key Antenna Ring & Ignition Switch Key Cylinder
GC0035763Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the sentry key antenna ring (1) to the ignition switch key cylinder (2).

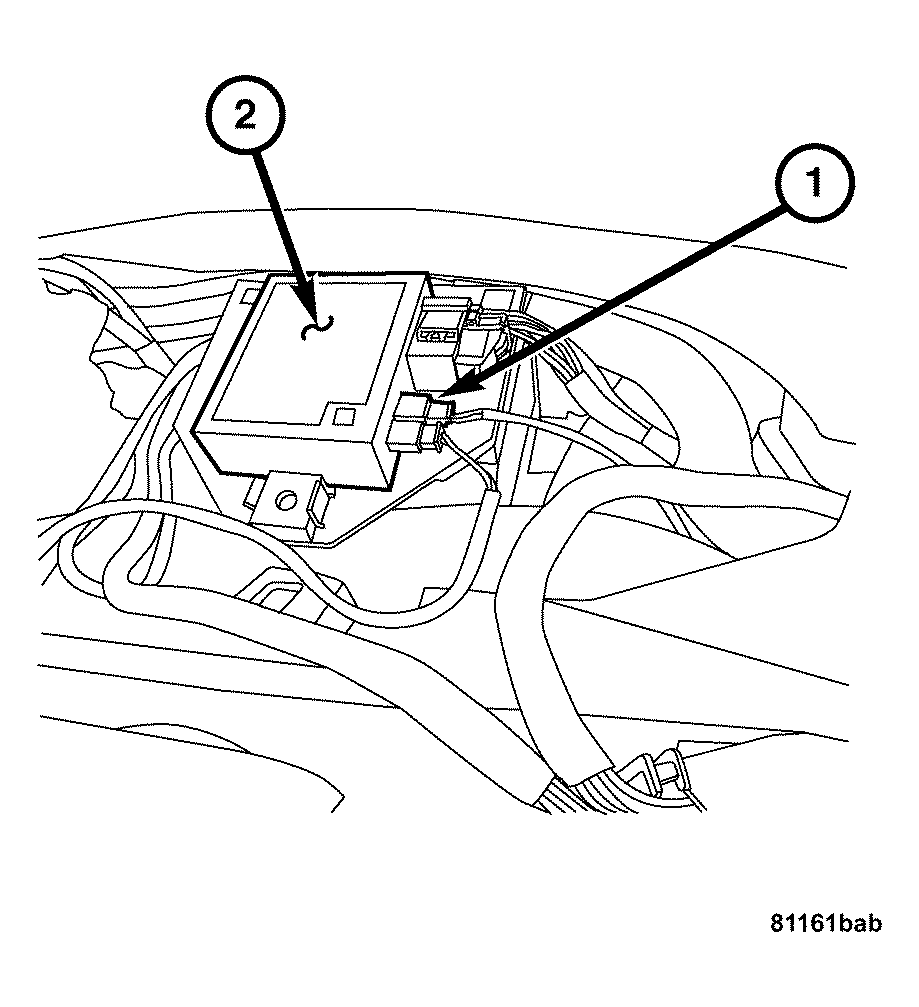

    Fig 2: Disconnecting/Connecting Sentry Key Antenna Ring Electrical Connector
    GC0035762Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the sentry key antenna ring electrical connector (1) to the sentry key remote entry module (2).
  3. Install the instrument cluster. (Refer to ELECTRICAL/INSTRUMENT CLUSTER - INSTALLATION) .
